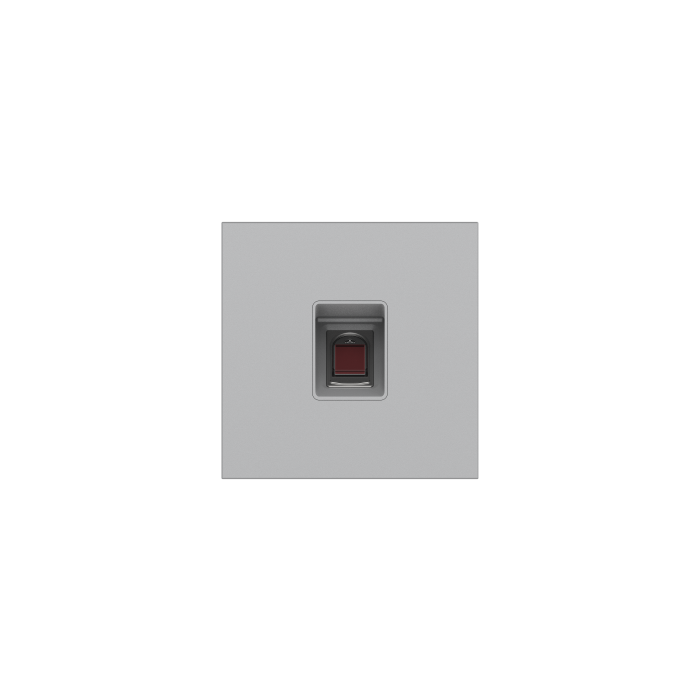

Dahua Modular Video Intercom Door Station Fingerprint Module.
Dahua Modular Video Intercom Door Station Fingerprint Module. Features an embedded processor housed in an aluminum alloy casing with IP65 and IK07 pro...
Dahua Modular Video Intercom Door Station Fingerprint Module. Features an embedded processor housed in an aluminum alloy casing with IP65 and IK07 protection ratings. Supports flush and surface mount installation, operates from -30°C to +60°C, and is powered by 5 VDC supplied by other modules in the modular door station system.
Contact 0345 863 9750 for availability
SKU:
DHI-VTO4103F-MF
Click to copy
✔ Copied!
Product Details
Dahua Modular Video Intercom Door Station Fingerprint Module. Features an embedded processor housed in an aluminum alloy casing with IP65 and IK07 protection ratings. Supports flush and surface mount installation, operates from -30°C to +60°C, and is powered by 5 VDC supplied by other modules in the modular door station system.
| Manufacturer | Dahua |
|---|---|
| Ingress Protection | IP65 (silicone sealant required for installation) |
| Appearance Color | Silver |
| Casing Material | Aluminum alloy |
| Dimensions | 100 mm × 100 mm × 38.50 mm (3.94" × 3.94" × 1.52") |
| Gross Weight | 0.33 kg (0.73 lb) |
| IK Rating | IK07 |
| Installation | Flush Mount; Surface Mount |
| Main Processor | Embedded Processor |
| Module Type | Fingerprint reader module |
| Operating Humidity | 10%–90% RH |
| Operating Temperature | -30°C to +60°C (-22°F to +140°F) |
| Power Consumption | ≤0.5 W |
| Power Output | 5 VDC (provides power for other modules) |
| Power Supply | 5 VDC (provided by other modules) |
| Series | VTO4103F modular door station |
