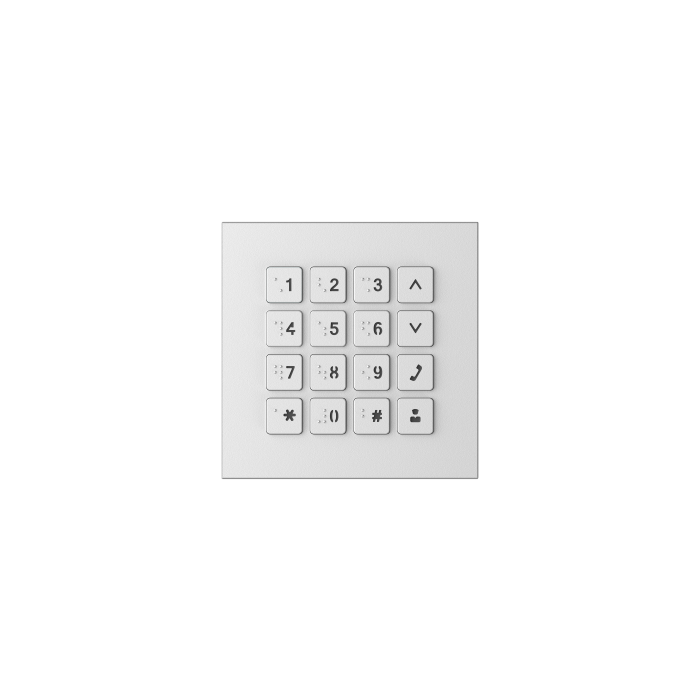

Dahua Modular Video Door Station Keypad Module with metal backlit keyboard.
Dahua Modular Video Door Station Keypad Module with metal backlit keyboard. Features a full alphanumeric mechanical keypad in a compact 100mm × 100mm ...
Dahua Modular Video Door Station Keypad Module with metal backlit keyboard. Features a full alphanumeric mechanical keypad in a compact 100mm × 100mm aluminum alloy casing with IP65 weatherproof and IK07 vandal-resistant ratings. Supports flush and surface mount installation, operates from –30°C to +60°C, and is powered by 5VDC supplied by other modules in the modular intercom system.
Contact 0345 863 9750 for availability
SKU:
DHI-VTO4103F-MK
Click to copy
✔ Copied!
Product Details
Dahua Modular Video Door Station Keypad Module with metal backlit keyboard. Features a full alphanumeric mechanical keypad in a compact 100mm × 100mm aluminum alloy casing with IP65 weatherproof and IK07 vandal-resistant ratings. Supports flush and surface mount installation, operates from –30°C to +60°C, and is powered by 5VDC supplied by other modules in the modular intercom system.
| Manufacturer | Dahua |
|---|---|
| Ingress Protection | IP65 (silicone sealant required for installation) |
| Camera Body Style | Modular Panel |
| Appearance Color | Black |
| Button Type | Mechanical |
| Casing Material | Aluminum alloy |
| Dimensions | 100 mm × 100 mm × 31 mm (3.94" × 3.94" × 1.22") |
| Gross Weight | 0.32 kg (0.71 lb) |
| IK Rating | IK07 |
| Installation | Flush Mount; Surface Mount |
| Keyboard Type | Full alphanumeric keypad |
| Main Processor | Embedded Processor |
| Operating Humidity | 10%–90% RH |
| Operating Temperature | -30°C to +60°C (-22°F to +140°F) |
| Power Consumption | ≤0.5 W |
| Power Output | 5 VDC (provides power for other modules) |
| Power Supply | 5 VDC (provided by other modules) |
| Series | DHI-VTO4103F-X Modular Series |
