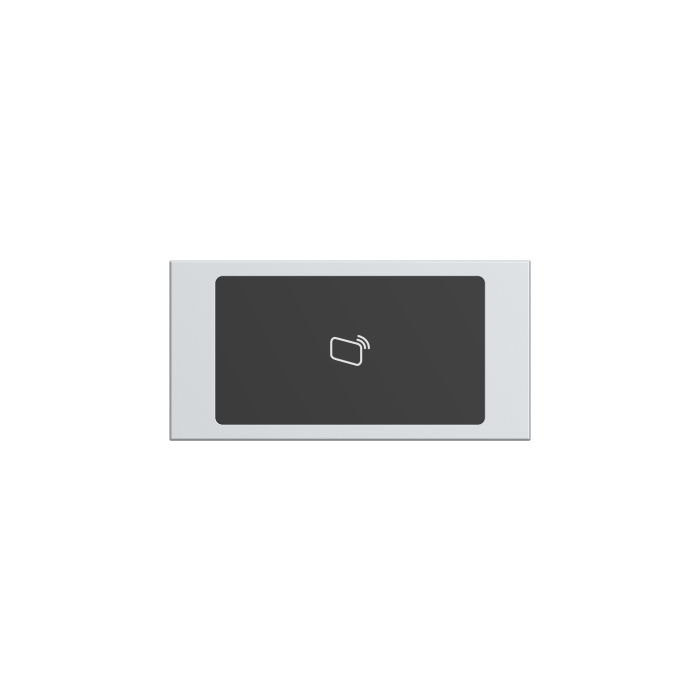

Dahua IC Card Reader Module for modular video door station systems.
Dahua IC Card Reader Module for modular video door station systems. Supports 13.56 MHz IC cards with a reading distance of 1–3 cm. Built with an alumi...
Dahua IC Card Reader Module for modular video door station systems. Supports 13.56 MHz IC cards with a reading distance of 1–3 cm. Built with an aluminium alloy casing rated IP65 and IK07, suitable for outdoor flush or surface mount installation.
Contact 0345 863 9750 for availability
SKU:
DHI-VTO4103F-MR
Click to copy
✔ Copied!
Product Details
Dahua IC Card Reader Module for modular video door station systems. Supports 13.56 MHz IC cards with a reading distance of 1–3 cm. Built with an aluminium alloy casing rated IP65 and IK07, suitable for outdoor flush or surface mount installation.
| Manufacturer | Dahua |
|---|---|
| Ingress Protection | IP65 (silicone sealant required for installation) |
| Appearance Color | Silver |
| Card Reading Distance | 1 cm – 3 cm (0.39" – 1.18") |
| Card Type | IC card |
| Casing Material | Aluminum alloy |
| Dimensions | 100 mm × 50.0 mm × 28.50 mm (3.94" × 1.97" × 1.12") |
| Gross Weight | 0.16 kg (0.35 lb) |
| IK Rating | IK07 |
| Installation | Flush Mount; Surface Mount |
| Main Processor | Embedded Processor |
| Max Transmission Power | 42 dBuA/m @ 10 m |
| Operating Environment | Outdoor |
| Operating Humidity | 10%–90% RH |
| Operating Temperature | -30 °C to +60 °C (-22 °F to +140 °F) |
| Power Consumption | ≤2 W |
| Power Output | 5 VDC (provides power for other modules) |
| Power Supply | 5 VDC (provided by other modules) |
| RFID Frequency | 13.56 MHz |
| RFID Modulation | AM |
