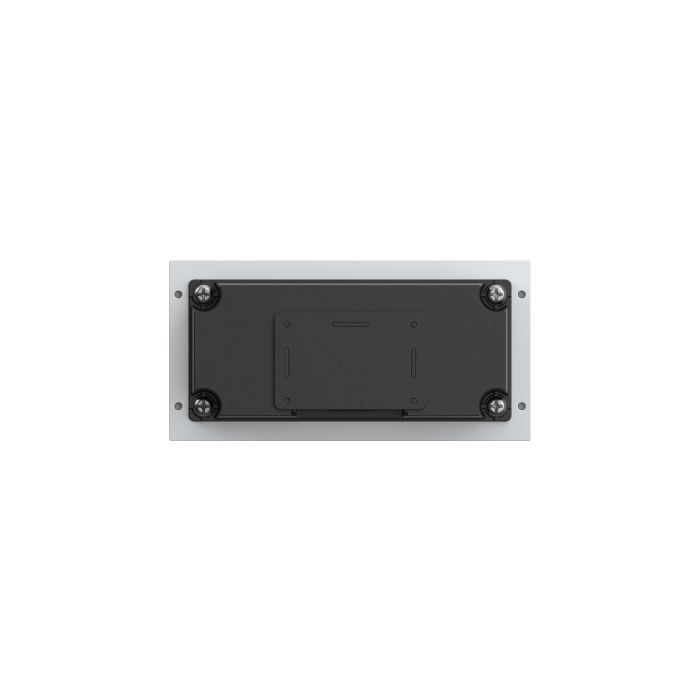

Dahua ID Card Reader Module for Modular Video Door Station.
Dahua ID Card Reader Module for Modular Video Door Station. Supports 125 kHz AM-modulated ID cards with a read distance of 1–3 cm. Housed in an alumin...
Dahua ID Card Reader Module for Modular Video Door Station. Supports 125 kHz AM-modulated ID cards with a read distance of 1–3 cm. Housed in an aluminum alloy casing with IP65 weatherproofing and IK07 vandal resistance; powered by 5 VDC supplied from other modules in the system.
In Stock
| Store | Stock |
|---|---|
| PureTech UK | 1 |
| PureTech Derby | Available to order |
SKU:
DHI-VTO4103F-MR1
Click to copy
✔ Copied!
Product Details
Dahua ID Card Reader Module for Modular Video Door Station. Supports 125 kHz AM-modulated ID cards with a read distance of 1–3 cm. Housed in an aluminum alloy casing with IP65 weatherproofing and IK07 vandal resistance; powered by 5 VDC supplied from other modules in the system.
| Manufacturer | Dahua |
|---|---|
| Ingress Protection | IP65 (silicone sealant required for installation) |
| Appearance Color | Silver |
| Card Reading Distance | 1 cm – 3 cm (0.39" – 1.18") |
| Card Type | ID card |
| Casing Material | Aluminum alloy |
| Dimensions | 100 mm × 50.0 mm × 28.50 mm (3.94" × 1.97" × 1.12") |
| Gross Weight | 0.16 kg (0.35 lb) |
| IK Rating | IK07 |
| Installation | Flush Mount; Surface Mount |
| Main Processor | Embedded Processor |
| Max Transmission Power | 66 dBuA/m @ 10 m |
| Operating Humidity | 10% – 90% RH |
| Operating Temperature | -30 °C to +60 °C (-22 °F to +140 °F) |
| Power Consumption | ≤2 W |
| Power Output | 5 VDC (provides power for other modules) |
| Power Supply | 5 VDC (provided by other modules) |
| RFID Frequency | 125 kHz |
| RFID Modulation | AM |
