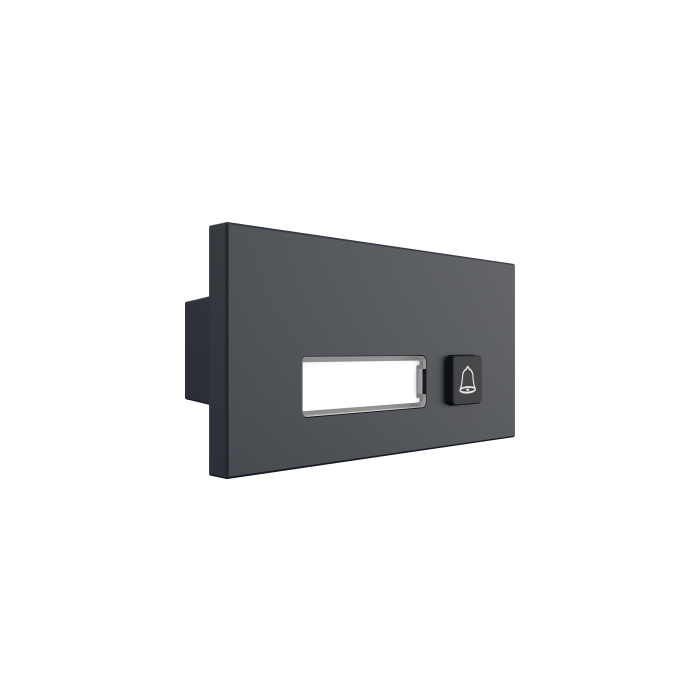

Dahua Modular Video Door Station Button Module with single mechanical call button.
Dahua Modular Video Door Station Button Module with single mechanical call button. Built from aluminum alloy with a black finish, rated IP65 weatherpr...
Dahua Modular Video Door Station Button Module with single mechanical call button. Built from aluminum alloy with a black finish, rated IP65 weatherproof and IK07 vandal-resistant for outdoor use. Powered by 5 VDC from other modules and can supply 5 VDC power output to connected modules.
Contact 0345 863 9750 for availability
SKU:
DHI-VTO4103FB-MB1-Black
Click to copy
✔ Copied!
Product Details
Dahua Modular Video Door Station Button Module with single mechanical call button. Built from aluminum alloy with a black finish, rated IP65 weatherproof and IK07 vandal-resistant for outdoor use. Powered by 5 VDC from other modules and can supply 5 VDC power output to connected modules.
| Manufacturer | Dahua |
|---|---|
| Ingress Protection | IP65 (silicone sealant required for installation) |
| Appearance Color | Black |
| Button Type | Mechanical |
| Casing Material | Aluminum alloy |
| Dimensions | 100 mm × 50.0 mm × 30.50 mm (3.94" × 1.97" × 1.20") |
| Gross Weight | 0.18 kg (0.40 lb) |
| IK Rating | IK07 |
| Installation | Flush Mount, Surface Mount |
| Main Processor | Embedded Processor |
| Module Type | Single call button module |
| Number Of Buttons | 1 |
| Operating Humidity | 10%–90% RH |
| Operating Temperature | -30°C to +60°C |
| Power Consumption | ≤0.5 W |
| Power Output | 5 VDC (provides power for other modules) |
| Power Supply | 5 VDC (provided by other modules) |
