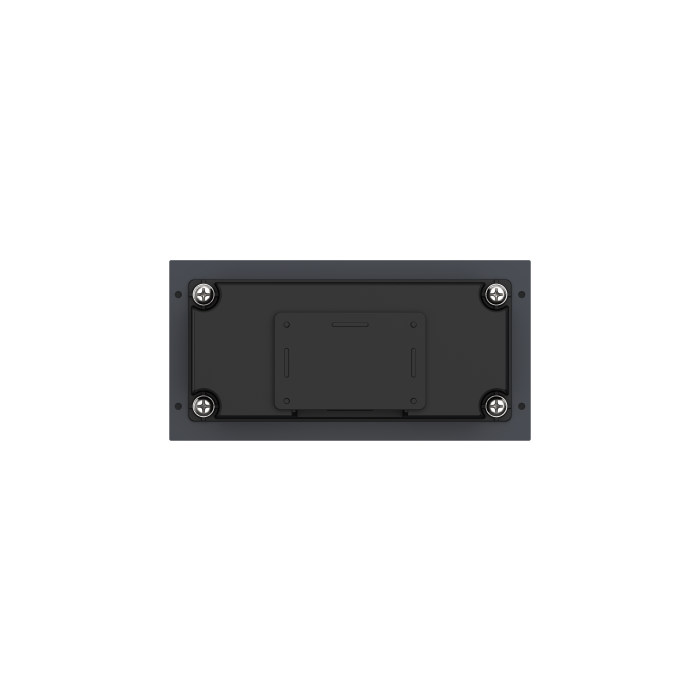

Dahua Modular Video Intercom Outdoor Door Station Button Module with two call buttons.
Dahua Modular Video Intercom Outdoor Door Station Button Module with two call buttons. Features mechanical button type, aluminum alloy casing, and 5 V...
Dahua Modular Video Intercom Outdoor Door Station Button Module with two call buttons. Features mechanical button type, aluminum alloy casing, and 5 VDC power supply provided by other modules. Rated IP65 weatherproof and IK07 vandal-resistant for outdoor installation; supports both flush and surface mounting.
Contact 0345 863 9750 for availability
SKU:
DHI-VTO4103FB-MB2-Black
Click to copy
✔ Copied!
Product Details
Dahua Modular Video Intercom Outdoor Door Station Button Module with two call buttons. Features mechanical button type, aluminum alloy casing, and 5 VDC power supply provided by other modules. Rated IP65 weatherproof and IK07 vandal-resistant for outdoor installation; supports both flush and surface mounting.
| Manufacturer | Dahua |
|---|---|
| Ingress Protection | IP65 (silicone sealant required for installation) |
| Appearance Color | Black |
| Button Type | Mechanical |
| Casing Material | Aluminum alloy |
| Dimensions | 100 mm × 50.0 mm × 30.50 mm (3.94" × 1.97" × 1.20") |
| Gross Weight | 0.17 kg (0.37 lb) |
| IK Rating | IK07 |
| Installation | Flush Mount; Surface Mount |
| Main Processor | Embedded Processor |
| Number Of Buttons | 2 |
| Operating Environment | Outdoor |
| Operating Humidity | 10%–90% RH |
| Operating Temperature | -30 °C to +60 °C (-22 °F to +140 °F) |
| Power Consumption | ≤0.5 W |
| Power Output | 5 VDC (provides power for other modules) |
| Power Supply | 5 VDC (provided by other modules) |
