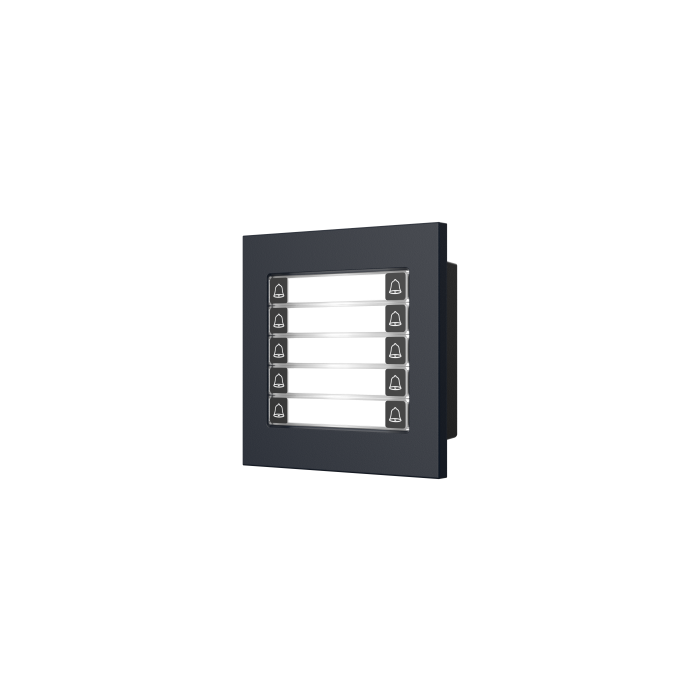

Dahua Modular Video Door Station Button Module with 10 Mechanical Buttons.
Dahua Modular Video Door Station Button Module with 10 Mechanical Buttons. Features a dual-column, 10-button mechanical call button layout in a 100mm ...
Dahua Modular Video Door Station Button Module with 10 Mechanical Buttons. Features a dual-column, 10-button mechanical call button layout in a 100mm × 100mm aluminium alloy housing rated IP65 and IK07. Designed for modular intercom systems, it is powered by and provides 5 VDC to adjacent modules, and is suitable for outdoor use up to 3,000m altitude.
Contact 0345 863 9750 for availability
SKU:
DHI-VTO4103FB-MDB10-Black
Click to copy
✔ Copied!
Product Details
Dahua Modular Video Door Station Button Module with 10 Mechanical Buttons. Features a dual-column, 10-button mechanical call button layout in a 100mm × 100mm aluminium alloy housing rated IP65 and IK07. Designed for modular intercom systems, it is powered by and provides 5 VDC to adjacent modules, and is suitable for outdoor use up to 3,000m altitude.
| Manufacturer | Dahua |
|---|---|
| Ingress Protection | IP65 (silicone sealant required) |
| Appearance Color | Black |
| Button Type | Mechanical |
| Casing Material | Aluminum alloy |
| Certifications | CE EMC; CE LVD |
| Dimensions Inch | 3.94" × 3.94" × 1.02" |
| Dimensions Mm | 100.0 × 100.0 × 26 mm |
| Gross Weight | 0.33 kg (0.73 lb) |
| IK Rating | IK07 |
| Installation | Flush Mount or Surface Mount |
| Number Of Buttons | 10 |
| Operating Altitude | 0–3,000 m |
| Operating Environment | Outdoor |
| Operating Humidity | 10%–90% RH, non-condensing |
| Operating Temperature | -30°C to +60°C |
| Power Consumption Standby | ≤0.2 W |
| Power Consumption Working | ≤0.6 W |
| Power Output | 5 VDC (provides power to other modules) |
| Power Supply | 5 VDC (provided by other modules) |
| Storage Humidity | 30%–75% RH |
| Storage Temperature | 0°C to +40°C |
