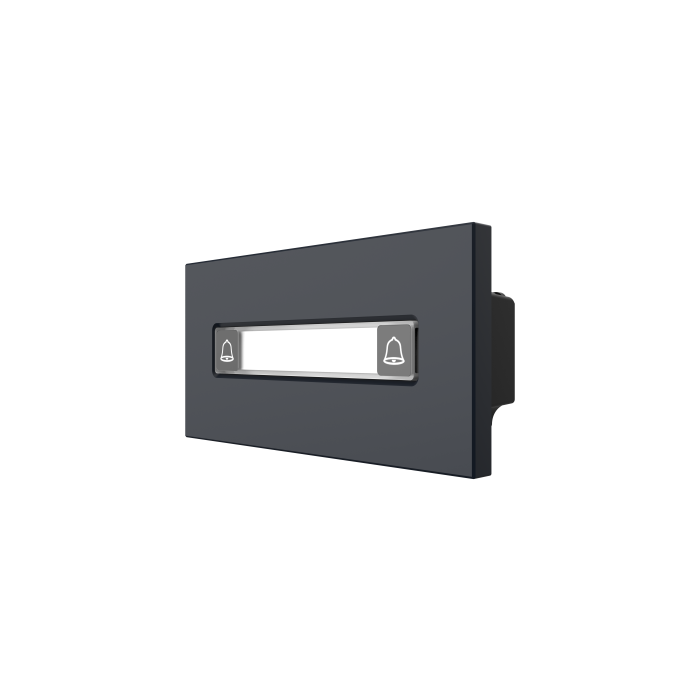

Dahua Modular Video Door Station Button Module with 2 Mechanical Buttons.
Dahua Modular Video Door Station Button Module with 2 Mechanical Buttons. Compact aluminium alloy module featuring two call buttons arranged horizonta...
Dahua Modular Video Door Station Button Module with 2 Mechanical Buttons. Compact aluminium alloy module featuring two call buttons arranged horizontally, designed for integration within the DHI-VTO4103FB modular door station system. Supports flush and surface mount installation with IP65 weather resistance (silicone sealant required) and IK07 impact protection.
Contact 0345 863 9750 for availability
SKU:
DHI-VTO4103FB-MDB2-Black
Click to copy
✔ Copied!
Product Details
Dahua Modular Video Door Station Button Module with 2 Mechanical Buttons. Compact aluminium alloy module featuring two call buttons arranged horizontally, designed for integration within the DHI-VTO4103FB modular door station system. Supports flush and surface mount installation with IP65 weather resistance (silicone sealant required) and IK07 impact protection.
| Manufacturer | Dahua |
|---|---|
| Ingress Protection | IP65 (silicone sealant required for installation) |
| Appearance Color | Black |
| Button Type | Mechanical |
| Casing Material | Aluminum alloy |
| Certifications | CE EMC; CE LVD |
| Dimensions In | 3.94" × 1.97" × 1.02" |
| Dimensions Mm | 100.0 × 50.0 × 26 mm |
| Gross Weight Kg | 0.23 |
| Gross Weight Lb | 0.51 |
| IK Rating | IK07 |
| Installation | Flush Mount; Surface Mount |
| Number Of Buttons | 2 |
| Operating Altitude | 0–3,000 m (0–9,842.52 ft) |
| Operating Environment | Outdoor |
| Operating Humidity | 10%–90% RH, non-condensing |
| Operating Temperature | -30°C to +60°C (-22°F to +140°F) |
| Power Consumption | ≤0.2 W (standby), ≤0.6 W (working) |
| Power Output | 5 VDC (provides power for other modules) |
| Power Supply | 5 VDC (provided by other modules) |
| Series | VTO4103FB Modular Door Station |
| Storage Humidity | 30%–75% RH |
| Storage Temperature | 0°C to +40°C (+32°F to +104°F) |
