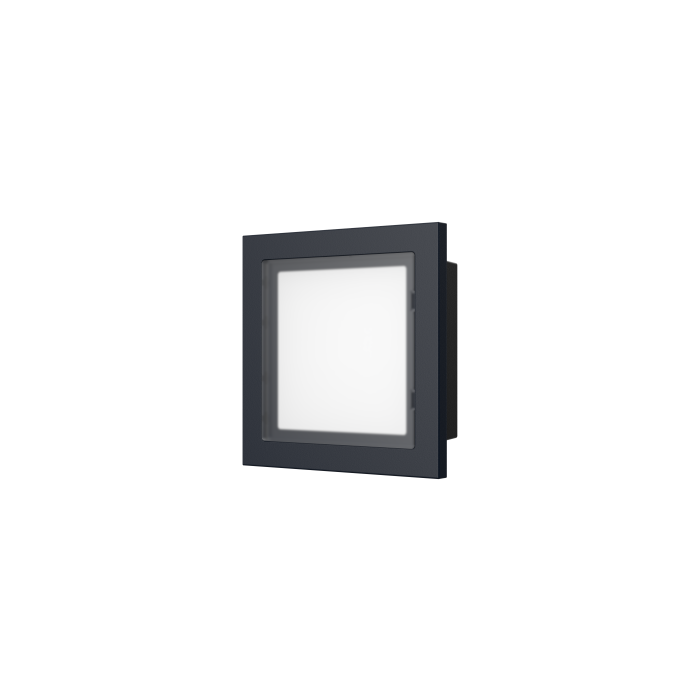

Dahua Modular Video Door Station Information Display Module in Black.
Dahua Modular Video Door Station Information Display Module in Black. Blank panel module designed to display custom information for visitors or homeow...
Dahua Modular Video Door Station Information Display Module in Black. Blank panel module designed to display custom information for visitors or homeowners, constructed from anodized aluminum with a black finish. Rated IP65 and IK07 for outdoor use, operating from -30°C to +60°C, powered via 5 VDC from connected modules.
Contact 0345 863 9750 for availability
SKU:
DHI-VTO4103FB-MI-Black
Click to copy
✔ Copied!
Product Details
Dahua Modular Video Door Station Information Display Module in Black. Blank panel module designed to display custom information for visitors or homeowners, constructed from anodized aluminum with a black finish. Rated IP65 and IK07 for outdoor use, operating from -30°C to +60°C, powered via 5 VDC from connected modules.
| Manufacturer | Dahua |
|---|---|
| Ingress Protection | IP65 (silicone sealant required for installation) |
| Appearance Color | Black |
| Casing Material | Aluminum |
| Certifications | CE |
| Dimensions | 100.0 mm × 100.0 mm × 28.5 mm (3.94" × 3.94" × 1.12") |
| Gross Weight | 0.28 kg (0.62 lb) |
| IK Rating | IK07 |
| Installation | Flush Mount / Surface Mount |
| Module Type | Information display panel module |
| Operating Altitude | 0–3000 m |
| Operating Environment | Outdoor |
| Operating Humidity | 10%–90% RH, non-condensing |
| Operating Temperature | -30°C to +60°C (-22°F to +140°F) |
| Power Consumption | ≤0.5 W |
| Power Supply | 5 VDC (provided by other modules) |
| Series | VTO4103FB-X Modular Door Station Series |
| Storage Humidity | 30%–75% RH, non-condensing |
| Storage Temperature | 0°C to +40°C (+32°F to +104°F) |
