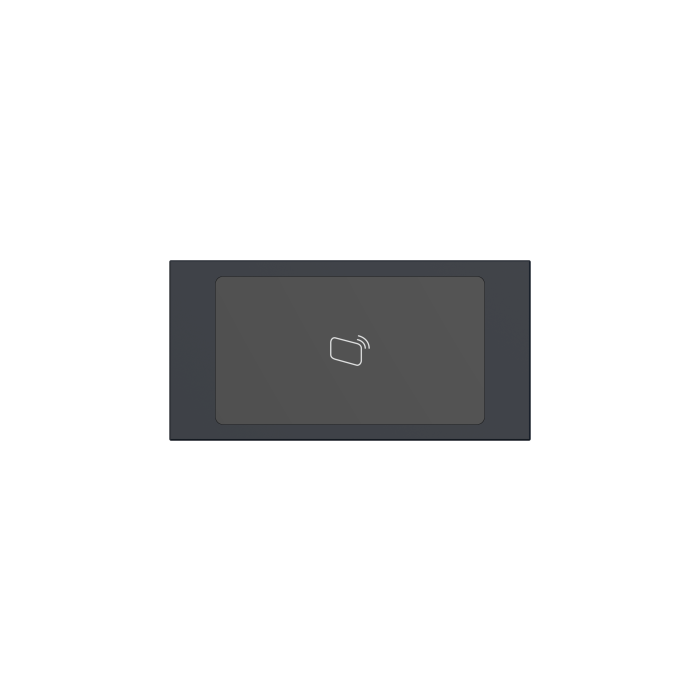

Dahua IP Video Door Station IC Card Reader Module.
Dahua IP Video Door Station IC Card Reader Module. This modular door station component features a 13.56 MHz IC card reader with AM modulation, support...
Dahua IP Video Door Station IC Card Reader Module. This modular door station component features a 13.56 MHz IC card reader with AM modulation, supporting card reading distances of 1–3 cm. Built with an aluminum alloy casing, rated IP65 and IK07, and operates in temperatures from -30°C to +60°C.
Contact 0345 863 9750 for availability
SKU:
DHI-VTO4103FB-MR-Black
Click to copy
✔ Copied!
Product Details
Dahua IP Video Door Station IC Card Reader Module. This modular door station component features a 13.56 MHz IC card reader with AM modulation, supporting card reading distances of 1–3 cm. Built with an aluminum alloy casing, rated IP65 and IK07, and operates in temperatures from -30°C to +60°C.
| Manufacturer | Dahua |
|---|---|
| Ingress Protection | IP65 (silicone sealant required for installation) |
| Appearance Color | Black |
| Card Reading Distance | 1 cm – 3 cm (0.39" – 1.18") |
| Card Type | IC card |
| Casing Material | Aluminum alloy |
| Dimensions | 100 mm × 50.0 mm × 28.50 mm (3.94" × 1.97" × 1.12") |
| Gross Weight | 0.16 kg (0.35 lb) |
| IK Rating | IK07 |
| Installation | Flush Mount; Surface Mount |
| Main Processor | Embedded Processor |
| Max Transmission Power | 42 dBuA/m @ 10m |
| Operating Humidity | 10%–90% RH |
| Operating Temperature | -30°C to +60°C (-22°F to +140°F) |
| Power Consumption | ≤2 W |
| Power Output | 5 VDC (provides power for other modules) |
| Power Supply | 5 VDC (provided by other modules) |
| RFID Frequency | 13.56 MHz |
| RFID Modulation | AM |
