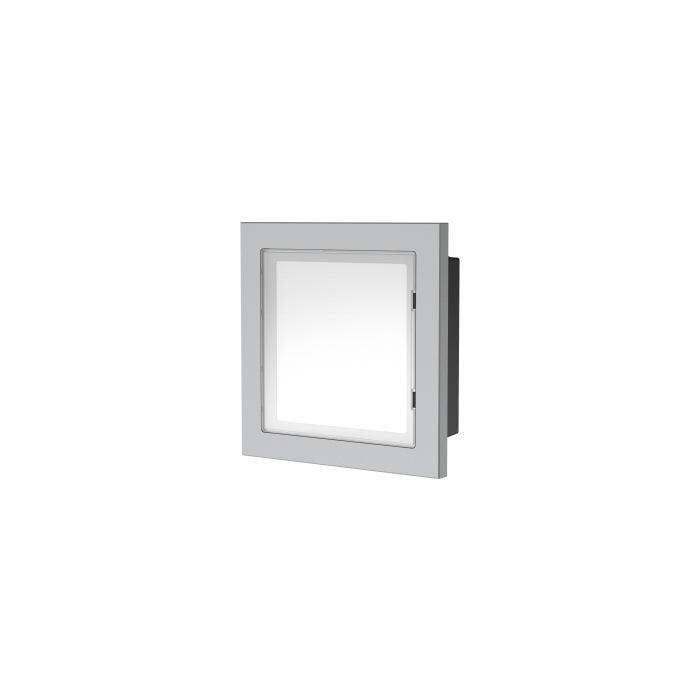

Dahua Information Display Module for modular video intercom door stations.
Dahua Information Display Module for modular video intercom door stations. A 100mm × 100mm aluminium-framed blank display panel designed to present cu...
Dahua Information Display Module for modular video intercom door stations. A 100mm × 100mm aluminium-framed blank display panel designed to present custom information or announcements at building entrance points. Powered by 5 VDC supplied from other modules in the VTO4202F modular system; rated IP65 and IK07 for outdoor use.
Contact 0345 863 9750 for availability
SKU:
DHI-VTO4202F-MI
Click to copy
✔ Copied!
Product Details
Dahua Information Display Module for modular video intercom door stations. A 100mm × 100mm aluminium-framed blank display panel designed to present custom information or announcements at building entrance points. Powered by 5 VDC supplied from other modules in the VTO4202F modular system; rated IP65 and IK07 for outdoor use.
| Manufacturer | Dahua |
|---|---|
| Ingress Protection | IP65 |
| Camera Body Style | Modular Panel |
| Appearance Color | Silver |
| Casing Material | Aluminum |
| Certifications | CE |
| Compatible Series | VTO4202F modular video intercom system |
| Dimensions | 100.0 mm × 100.0 mm × 28.5 mm (3.94" × 3.94" × 1.12") |
| Gross Weight | 0.28 kg (0.62 lb) |
| IK Rating | IK07 |
| Installation | Flush Mount; Surface Mount |
| Operating Altitude | 0 m–3,000 m |
| Operating Environment | Outdoor |
| Operating Humidity | 10%–90% RH, non-condensing |
| Operating Temperature | -30 °C to +60 °C (-22 °F to +140 °F) |
| Power Consumption | ≤0.5 W |
| Power Supply | 5 VDC (provided by other modules) |
| Storage Humidity | 30%–75% RH, non-condensing |
| Storage Temperature | 0 °C to +40 °C (+32 °F to +104 °F) |
