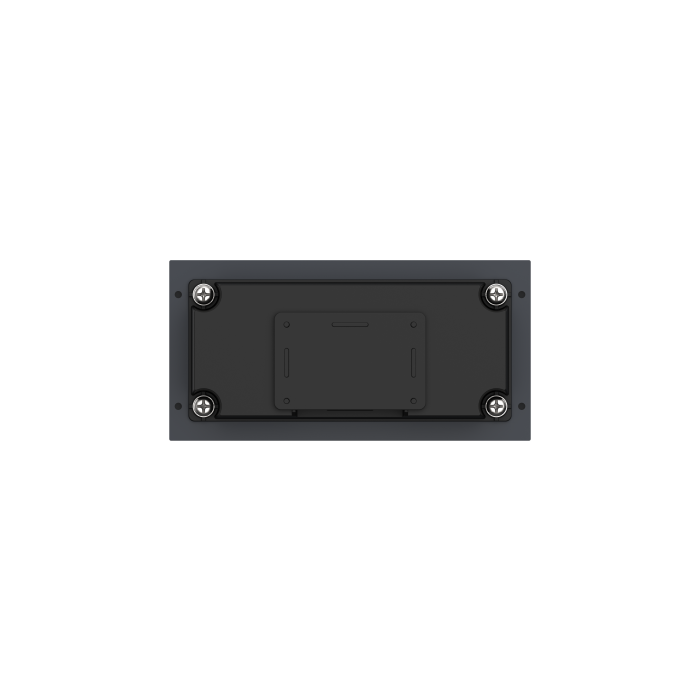

Dahua 2-Button Modular Video Door Station Call Module.
Dahua 2-Button Modular Video Door Station Call Module. Aluminum alloy construction with mechanical button type, IP65 weatherproof and IK07 vandal-resi...
Dahua 2-Button Modular Video Door Station Call Module. Aluminum alloy construction with mechanical button type, IP65 weatherproof and IK07 vandal-resistant rating. Powered by 5 VDC from other modules and can supply 5 VDC to other modules; supports flush and surface mount installation.
Contact 0345 863 9750 for availability
SKU:
DHI-VTO4202FB-MB2-Black
Click to copy
✔ Copied!
Product Details
Dahua 2-Button Modular Video Door Station Call Module. Aluminum alloy construction with mechanical button type, IP65 weatherproof and IK07 vandal-resistant rating. Powered by 5 VDC from other modules and can supply 5 VDC to other modules; supports flush and surface mount installation.
| Manufacturer | Dahua |
|---|---|
| Ingress Protection | IP65 (silicone sealant required for installation) |
| Appearance Color | Black |
| Button Type | Mechanical |
| Casing Material | Aluminum alloy |
| Dimensions | 100 mm × 50.0 mm × 30.50 mm |
| Gross Weight | 0.17 kg |
| IK Rating | IK07 |
| Installation | Flush Mount; Surface Mount |
| Number Of Buttons | 2 |
| Operating Humidity | 10%–90% RH |
| Operating Temperature | -30°C to +60°C |
| Power Consumption | ≤0.5 W |
| Power Output | 5 VDC (provides power for other modules) |
| Power Supply | 5 VDC (provided by other modules) |
| Processor | Embedded Processor |
| Series | VTO420XFB-X Modular Series |
