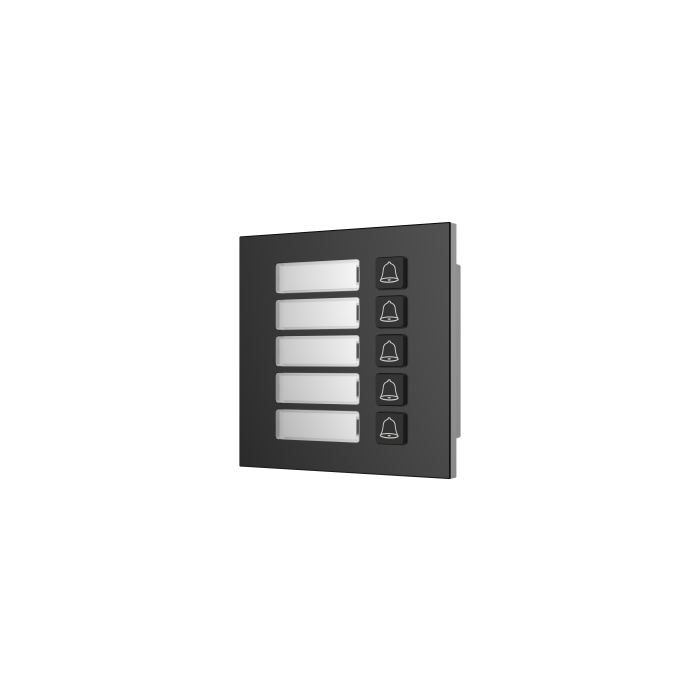

Dahua Modular Video Door Station Button Module with 5 Buttons.
Dahua Modular Video Door Station Button Module with 5 Buttons. Aluminum alloy casing with mechanical button type, rated IP65 (with silicone sealant) a...
Dahua Modular Video Door Station Button Module with 5 Buttons. Aluminum alloy casing with mechanical button type, rated IP65 (with silicone sealant) and IK07 vandal resistance. Operates at 5 VDC supplied by other modules and supports both flush and surface mount installation.
In Stock
| Store | Stock |
|---|---|
| PureTech UK | 10 |
| PureTech Derby | Available to order |
SKU:
DHI-VTO4202FB-MB5-Black
Click to copy
✔ Copied!
Product Details
Dahua Modular Video Door Station Button Module with 5 Buttons. Aluminum alloy casing with mechanical button type, rated IP65 (with silicone sealant) and IK07 vandal resistance. Operates at 5 VDC supplied by other modules and supports both flush and surface mount installation.
| Manufacturer | Dahua |
|---|---|
| Ingress Protection | IP65 (silicone sealant required) |
| Appearance Color | Black |
| Button Type | Mechanical |
| Casing Material | Aluminum alloy |
| Dimensions | 100 mm × 100 mm × 30.50 mm (3.94" × 3.94" × 1.2") |
| Gross Weight | 0.31 kg (0.68 lb) |
| IK Rating | IK07 |
| Installation | Flush Mount; Surface Mount |
| Main Processor | Embedded Processor |
| Number Of Buttons | 5 |
| Operating Humidity | 10%–90% RH |
| Operating Temperature | -30°C to +60°C (-22°F to +140°F) |
| Power Consumption | ≤0.5 W |
| Power Output | 5 VDC (provides power for other modules) |
| Power Supply | 5 VDC (provided by other modules) |
