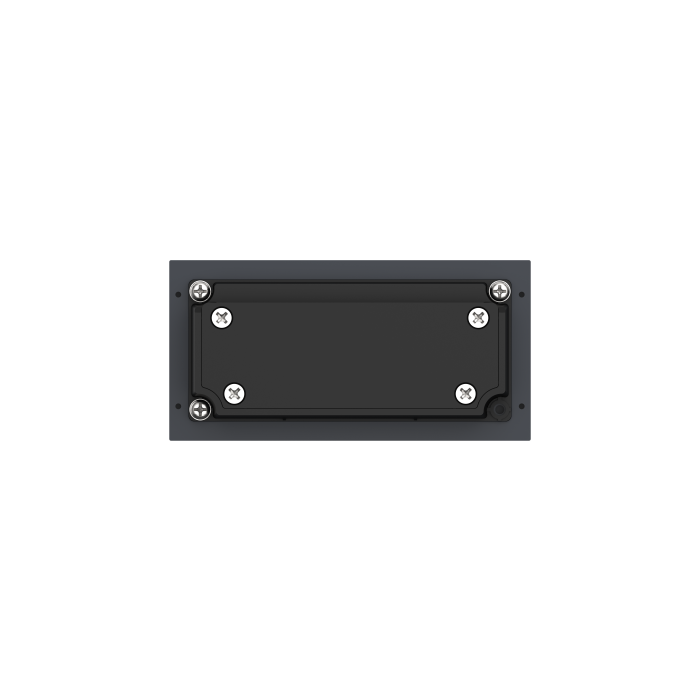

Dahua Modular Video Door Station Button Module with 2 Mechanical Call Buttons.
Dahua Modular Video Door Station Button Module with 2 Mechanical Call Buttons. Aluminium alloy construction rated IP65 and IK07, designed for outdoor ...
Dahua Modular Video Door Station Button Module with 2 Mechanical Call Buttons. Aluminium alloy construction rated IP65 and IK07, designed for outdoor use. Powered by 5 VDC supplied from other modules in the VTO4202FB modular intercom system, with a power output of 5 VDC to downstream modules.
Contact 0345 863 9750 for availability
SKU:
DHI-VTO4202FB-MDB2-Black
Click to copy
✔ Copied!
Product Details
Dahua Modular Video Door Station Button Module with 2 Mechanical Call Buttons. Aluminium alloy construction rated IP65 and IK07, designed for outdoor use. Powered by 5 VDC supplied from other modules in the VTO4202FB modular intercom system, with a power output of 5 VDC to downstream modules.
| Manufacturer | Dahua |
|---|---|
| Ingress Protection | IP65 (silicone sealant required), IK07 |
| Appearance Color | Black |
| Button Type | Mechanical |
| Casing Material | Aluminum alloy |
| Certifications | CE EMC, CE LVD |
| Dimensions | 100.0 mm × 50.0 mm × 26 mm (3.94" × 1.97" × 1.02") |
| Gross Weight | 0.23 kg (0.51 lb) |
| Installation Type | Module — requires compatible VTO4202FB system |
| Number Of Buttons | 2 |
| Operating Altitude | 0 m–3,000 m (0 ft–9,842.52 ft) |
| Operating Environment | Outdoor |
| Operating Humidity | 10%–90% (RH), non-condensing |
| Operating Temperature | -30 °C to +60 °C (-22 °F to +140 °F) |
| Power Consumption | ≤0.2 W (standby), ≤0.6 W (working) |
| Power Output | 5 VDC (provides power for other modules) |
| Power Supply | 5 VDC (provided by other modules) |
| Series | DHI-VTO420XFB-X |
| Storage Humidity | 30%–75% (RH) |
| Storage Temperature | 0 °C to +40 °C (+32 °F to +104 °F) |
