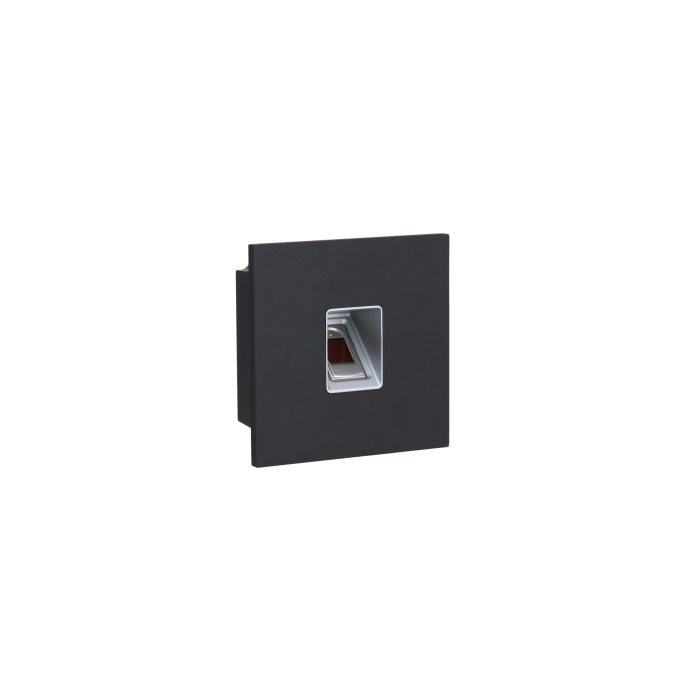

Dahua Fingerprint Reader Module for modular video door station systems.
Dahua Fingerprint Reader Module for modular video door station systems. Features an embedded processor, aluminum alloy casing, and 5 VDC power supply ...
Dahua Fingerprint Reader Module for modular video door station systems. Features an embedded processor, aluminum alloy casing, and 5 VDC power supply provided by other modules. Rated IK07 and IP65 (with silicone sealant), suitable for flush or surface mount outdoor installations operating from -30°C to +60°C.
Contact 0345 863 9750 for availability
SKU:
DHI-VTO4202FB-MF-Black
Click to copy
✔ Copied!
Product Details
Dahua Fingerprint Reader Module for modular video door station systems. Features an embedded processor, aluminum alloy casing, and 5 VDC power supply provided by other modules. Rated IK07 and IP65 (with silicone sealant), suitable for flush or surface mount outdoor installations operating from -30°C to +60°C.
| Manufacturer | Dahua |
|---|---|
| Ingress Protection | IP65 (silicone sealant required for installation) |
| Appearance Color | Black |
| Casing Material | Aluminum alloy |
| Dimensions | 100mm × 100mm × 38.50mm (3.94" × 3.94" × 1.52") |
| Gross Weight | 0.33 kg (0.73 lb) |
| IK Rating | IK07 |
| Installation | Flush Mount; Surface Mount |
| Main Processor | Embedded Processor |
| Operating Humidity | 10%–90% RH |
| Operating Temperature | -30°C to +60°C |
| Power Consumption | ≤0.5 W |
| Power Output | 5 VDC (provides power for other modules) |
| Power Supply | 5 VDC (provided by other modules) |
| Series | DHI-VTO420XFB-X |
