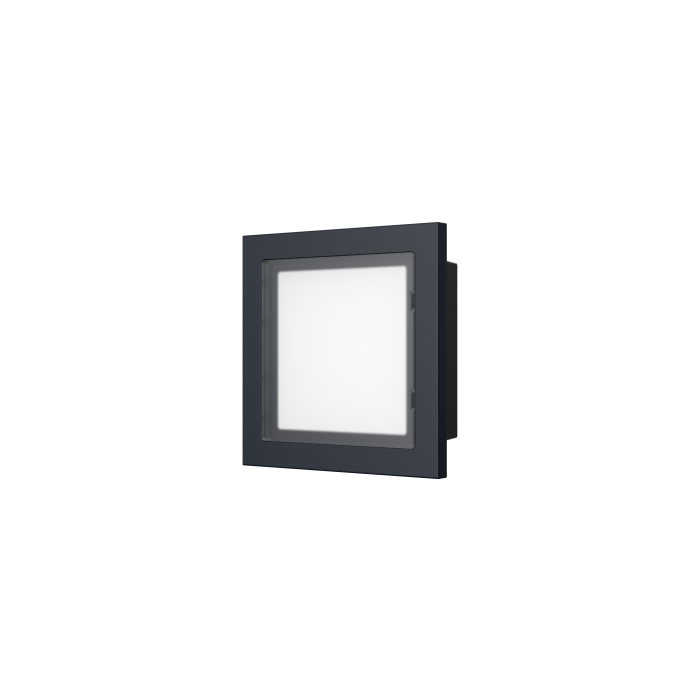

Dahua Information Announcement Display Panel Module for modular video intercom door stations.
Dahua Information Announcement Display Panel Module for modular video intercom door stations. Features a blank aluminium alloy panel (100mm × 100mm × ...
Dahua Information Announcement Display Panel Module for modular video intercom door stations. Features a blank aluminium alloy panel (100mm × 100mm × 28.5mm) designed to display custom information or name cards at building entrances. Rated IP65 and IK07 for outdoor use, operating from -30°C to +60°C, powered at 5VDC via other modules in the system.
Contact 0345 863 9750 for availability
SKU:
DHI-VTO4202FB-MI-Black
Click to copy
✔ Copied!
Product Details
Dahua Information Announcement Display Panel Module for modular video intercom door stations. Features a blank aluminium alloy panel (100mm × 100mm × 28.5mm) designed to display custom information or name cards at building entrances. Rated IP65 and IK07 for outdoor use, operating from -30°C to +60°C, powered at 5VDC via other modules in the system.
| Manufacturer | Dahua |
|---|---|
| Ingress Protection | IP65 (silicone sealant required), IK07 |
| Camera Body Style | Modular Panel |
| Appearance Color | Black |
| Casing Material | Aluminum |
| Certifications | CE |
| Dimensions | 100.0 mm × 100.0 mm × 28.5 mm (3.94" × 3.94" × 1.12") |
| Gross Weight | 0.28 kg (0.62 lb) |
| Installation | Compatible with DHI-VTO420XFB-X modular door station series |
| Operating Altitude | 0 m–3000 m |
| Operating Environment | Outdoor |
| Operating Humidity | 10%–90% (RH), non-condensing |
| Operating Temperature | -30°C to +60°C (-22°F to +140°F) |
| Power Consumption | ≤0.5 W |
| Power Supply | 5 VDC (provided by other modules) |
| Series | DHI-VTO420XFB-X |
| Storage Humidity | 30%–75% (RH), non-condensing |
| Storage Temperature | 0°C to +40°C |
