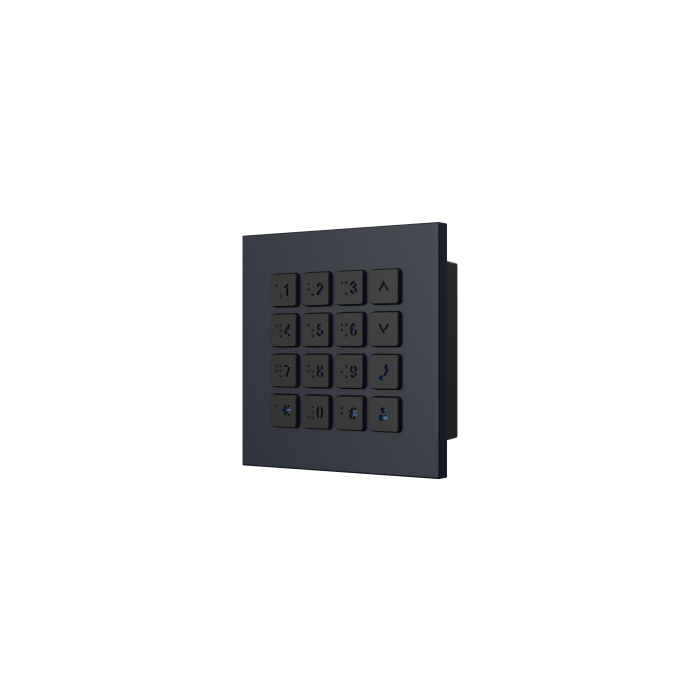

Dahua IP Video Intercom Keypad Module, part of the VTO420XFB-X modular door station series.
Dahua IP Video Intercom Keypad Module, part of the VTO420XFB-X modular door station series. Features a full mechanical keypad with embedded processor,...
Dahua IP Video Intercom Keypad Module, part of the VTO420XFB-X modular door station series. Features a full mechanical keypad with embedded processor, aluminum alloy casing, and 5 VDC power input/output for daisy-chaining with other modules. Rated IK07 and IP65 (with silicone sealant), suitable for flush or surface mount outdoor installation.
Contact 0345 863 9750 for availability
SKU:
DHI-VTO4202FB-MK-Black
Click to copy
✔ Copied!
Product Details
Dahua IP Video Intercom Keypad Module, part of the VTO420XFB-X modular door station series. Features a full mechanical keypad with embedded processor, aluminum alloy casing, and 5 VDC power input/output for daisy-chaining with other modules. Rated IK07 and IP65 (with silicone sealant), suitable for flush or surface mount outdoor installation.
| Manufacturer | Dahua |
|---|---|
| Ingress Protection | IP65 (silicone sealant required for installation) |
| Appearance Color | Black |
| Button Type | Mechanical |
| Casing Material | Aluminum alloy |
| Dimensions | 100 mm × 100 mm × 31 mm (3.94" × 3.94" × 1.22") |
| Gross Weight | 0.32 kg (0.71 lb) |
| IK Rating | IK07 |
| Installation | Flush Mount / Surface Mount |
| Main Processor | Embedded Processor |
| Operating Humidity | 10%–90% RH |
| Operating Temperature | -30°C to +60°C (-22°F to +140°F) |
| Power Consumption | ≤0.5 W |
| Power Output | 5 VDC (provides power for other modules) |
| Power Supply | 5 VDC (provided by other modules) |
| Series | VTO420XFB-X Modular Door Station |
