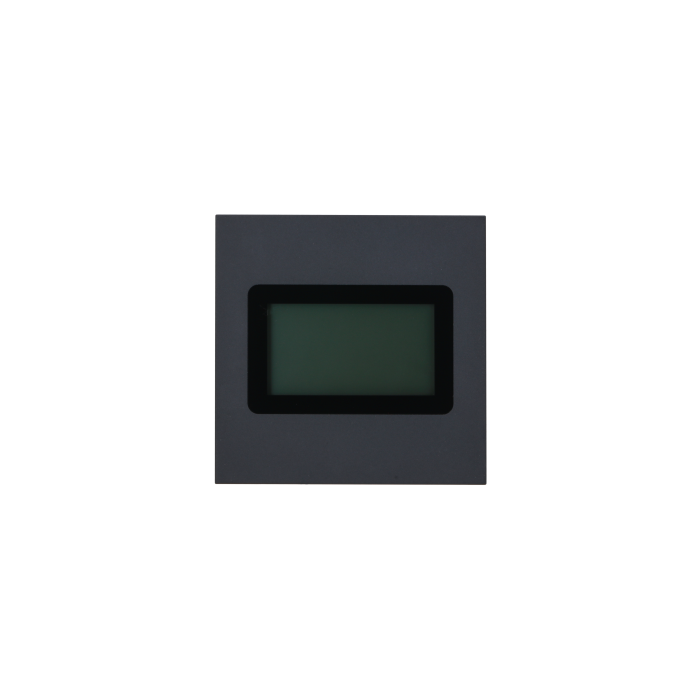

Dahua Modular Video Door Station Display Module with 3-inch non-touchscreen display.
Dahua Modular Video Door Station Display Module with 3-inch non-touchscreen display. Features a 160×96 resolution screen with 4 mechanical buttons and...
Dahua Modular Video Door Station Display Module with 3-inch non-touchscreen display. Features a 160×96 resolution screen with 4 mechanical buttons and full digital communication mode. Designed for outdoor use with IP65 weatherproofing and IK07 impact resistance, powered via 5 VDC from other modules in the modular intercom system.
Contact 0345 863 9750 for availability
SKU:
DHI-VTO4202FB-MS-Black
Click to copy
✔ Copied!
Product Details
Dahua Modular Video Door Station Display Module with 3-inch non-touchscreen display. Features a 160×96 resolution screen with 4 mechanical buttons and full digital communication mode. Designed for outdoor use with IP65 weatherproofing and IK07 impact resistance, powered via 5 VDC from other modules in the modular intercom system.
| Manufacturer | Dahua |
|---|---|
| Ingress Protection | IP65 (silicone sealant required for installation) |
| Camera Body Style | Modular Panel Module |
| Button Type | Mechanical |
| Casing Material | Aluminum alloy |
| Certifications | CE |
| Communication Mode | Full digital |
| Dimensions | 100.0 mm × 100.0 mm × 29.95 mm |
| Display Size | 3-inch |
| Gross Weight | 0.35 kg |
| IK Rating | IK07 |
| Installation | Flush Mount / Surface Mount |
| Number Of Buttons | 4 |
| Operating Altitude | 0 m–3,000 m |
| Operating Environment | Outdoor |
| Operating Humidity | 10%–90% RH, non-condensing |
| Operating Temperature | -20 °C to +60 °C |
| Power Consumption | 1.25 W |
| Power Output | 5 VDC / 250 mA |
| Power Supply | 5 VDC (provided by other modules) |
| Screen Resolution | 160 (H) × 96 (V) |
| Screen Type | Non-touchscreen |
| Storage Temperature | 0 °C to +40 °C |
