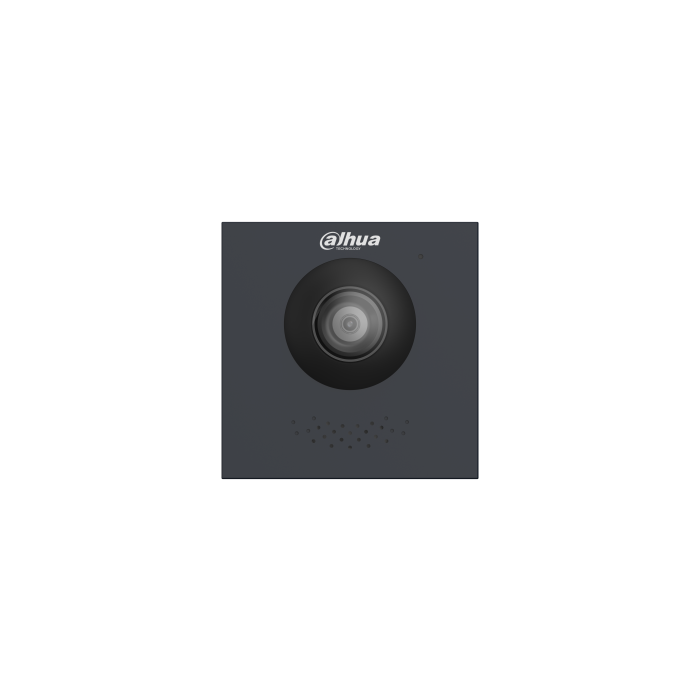

Dahua 2MP Modular Apartment Video Door Station with 168.6° Wide-Angle Fixed Lens.
Dahua 2MP Modular Apartment Video Door Station with 168.6° Wide-Angle Fixed Lens. Features a 1/2.9" 2MP CMOS sensor, 120dB WDR, H.265/H.264 compressio...
Dahua 2MP Modular Apartment Video Door Station with 168.6° Wide-Angle Fixed Lens. Features a 1/2.9" 2MP CMOS sensor, 120dB WDR, H.265/H.264 compression, and two-way audio with echo suppression. Rated IK07 and IP65, supports digital 2-wire communication, PoE or 48VDC power, remote unlock via mobile app, and Micro SD card storage up to 256GB.
Contact 0345 863 9750 for availability
SKU:
DHI-VTO4202FB-P-S3-Black
Click to copy
✔ Copied!
Product Details
Dahua 2MP Modular Apartment Video Door Station with 168.6° Wide-Angle Fixed Lens. Features a 1/2.9" 2MP CMOS sensor, 120dB WDR, H.265/H.264 compression, and two-way audio with echo suppression. Rated IK07 and IP65, supports digital 2-wire communication, PoE or 48VDC power, remote unlock via mobile app, and Micro SD card storage up to 256GB.
| Manufacturer | Dahua |
|---|---|
| Ingress Protection | IP65 |
| Image Sensor | 1/2.9" 2MP CMOS |
| Camera Body Style | Modular Door Station (Camera Module) |
| Alarm Output | 1 |
| Audio Bit Rate | 16 KHz, 16 Bit |
| Audio Compression | G.711a; G.711u; PCM |
| Audio Enhancement | Echo suppression / Digital noise reduction |
| Audio Input | 1 channel |
| Audio Mode | Two-way audio |
| Audio Output | Built-in speaker |
| Resolution | 2MP |
| Card Capacity | 3000 cards |
| Casing Material | Aluminum (Anodized front panel) |
| Certifications | CE |
| Communication Mode | Digital 2-wire |
| Compression | H.265; H.264 |
| Day Night | Auto (ICR) / Color / B/W |
| Dimensions | 100.0mm × 100.0mm × 49.4mm |
| Door Status Detection | 1 |
| Exit Button | 1 |
| Field Of View | H: 168.6°; V: 87.1°; D: 176.7° |
| Gross Weight | 0.43 kg |
| IK Rating | IK07 |
| Installation | Flush Mount; Surface Mount |
| Interoperability | CGI; ONVIF |
| Lens Type | Fixed Wide-Angle |
| Light Compensation | Auto IR |
| Lock Control | 1 |
| Mobile App | Yes (remote talk and unlock) |
| Network Port | 1 × RJ-45, 10/100 Mbps |
| Network Protocols | UDP; TCP; IPv4; DNS; RTSP; UPnP; SIP; P2P; RTP |
| Noise Reduction | 3D NR |
| Operating Altitude | 0m–3000m |
| Operating Environment | Outdoor |
| Operating Humidity | 10%–90% RH non-condensing |
| Operating System | Embedded Linux |
| Operating Temperature | -30°C to +60°C |
| Power Consumption | ≤4W standby; ≤5W working |
| Power Output | 12V / 600mA (1 port) |
| Power Supply | Dahua 2-wire switch (max 50m); 48VDC 1A; PoE (802.3af/at) |
| RS485 | 1 |
| Storage | Micro SD card (up to 256GB) |
| Storage Humidity | 30%–75% RH non-condensing |
| Storage Temperature | 0°C to +40°C |
| Tamper Alarm | Yes |
| Unlock Mode | Remote |
| Video Bit Rate | 256 Kbps to 8 Mbps |
| Video Frame Rate | 25fps |
| Video Resolution Main | 720p; WVGA; D1; CIF |
| Video Resolution Sub | 1080p; WVGA; D1; QVGA; CIF |
| WDR | 120dB |
| Web Configuration | Yes |
