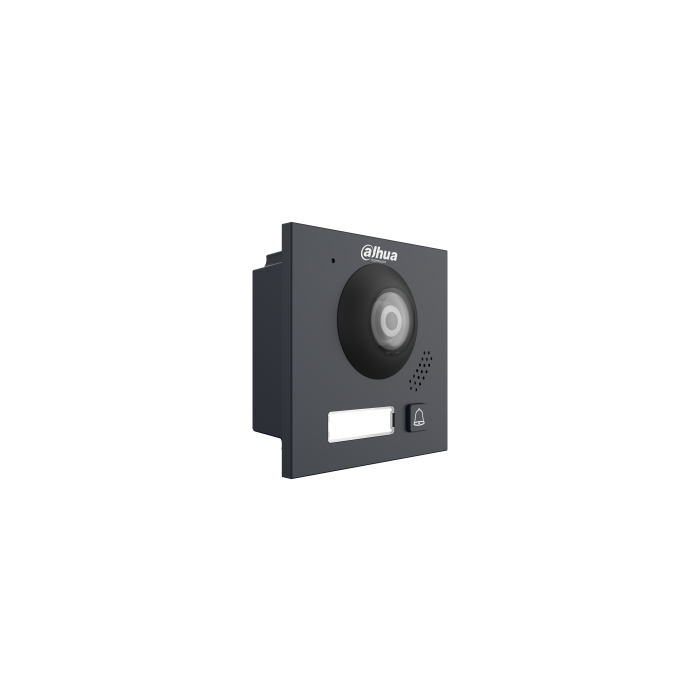

Dahua 2MP Modular Apartment Door Station with 168.6° Wide-Angle Camera.
Dahua 2MP Modular Apartment Door Station with 168.6° Wide-Angle Camera. Features a 1/2.9" 2MP CMOS sensor with 120dB WDR, digital 2-wire communication...
Dahua 2MP Modular Apartment Door Station with 168.6° Wide-Angle Camera. Features a 1/2.9" 2MP CMOS sensor with 120dB WDR, digital 2-wire communication, and PoE power supply. Supports H.265/H.264 video compression, two-way audio, remote unlock via mobile app, and up to 3000 card and fingerprint credentials. Rated IP65 and IK07 with an anodized aluminum front panel for outdoor use.
Contact 0345 863 9750 for availability
SKU:
DHI-VTO4202FB-P1-Black
Click to copy
✔ Copied!
Product Details
Dahua 2MP Modular Apartment Door Station with 168.6° Wide-Angle Camera. Features a 1/2.9" 2MP CMOS sensor with 120dB WDR, digital 2-wire communication, and PoE power supply. Supports H.265/H.264 video compression, two-way audio, remote unlock via mobile app, and up to 3000 card and fingerprint credentials. Rated IP65 and IK07 with an anodized aluminum front panel for outdoor use.
| Manufacturer | Dahua |
|---|---|
| Ingress Protection | IP65 |
| Image Sensor | 1/2.9" CMOS |
| Camera Body Style | Modular Door Station |
| Alarm Output | 1 |
| Appearance Color | Black |
| Audio Bit Rate | 16 kHz, 16 bits |
| Audio Compression | G.711a, G.711u, PCM |
| Audio Enhancement | Echo suppression / digital noise reduction |
| Audio Input | 1 channel |
| Audio Mode | Two-way audio |
| Audio Output | Built-in speaker |
| Button Type | Mechanical |
| Resolution | 2MP |
| Card Capacity | 3000 |
| Casing Material | Aluminum (anodized front panel) |
| Certifications | CE |
| Communication Mode | Digital 2-wire |
| Day Night | Auto (ICR) / Color / B/W |
| Dimensions Mm | 100.0 x 100.0 x 49.4 |
| Door Status Detection | 1 |
| Exit Button | 1 |
| Field Of View | H: 168.6°, V: 87.1°, D: 176.7° |
| Fingerprint Capacity | 3000 |
| Gross Weight Kg | 0.43 |
| IK Rating | IK07 |
| Installation | Flush Mount, Surface Mount |
| Interoperability | CGI, ONVIF |
| Leave Video | true |
| Light Compensation | Auto IR |
| Lock Control | 1 |
| Main Stream Resolution | 720p, WVGA, D1, CIF |
| Mobile App | DMSS |
| Network Port | 1 x RJ-45, 10/100 Mbps |
| Network Protocol | UDP, TCP, IPv4, DNS, RTSP, UPnP, SIP, P2P, RTP |
| Noise Reduction | 3D NR |
| Number Of Buttons | 1 |
| Operating Altitude | 0–3000m |
| Operating Environment | Outdoor |
| Operating Humidity | 10%–90% RH non-condensing |
| Operating System | Embedded Linux |
| Operating Temperature | -30°C to +60°C |
| Power Consumption | ≤4W standby, ≤5W working |
| Power Output | 12V / 600mA |
| Power Supply | 48VDC 1A via Dahua 2-wire switch (max 50m) or PoE (802.3af/at) |
| Processor | Embedded Processor |
| RS485 | 1 |
| Storage | Micro SD card up to 256GB |
| Storage Humidity | 30%–75% RH non-condensing |
| Storage Temperature | 0°C to +40°C |
| Sub Stream Resolution | 1080p, WVGA, D1, QVGA, CIF |
| Tamper Alarm | true |
| Unlock Mode | Remote |
| Video Bit Rate | 256 Kbps to 8 Mbps |
| Video Compression | H.265, H.264 |
| Video Frame Rate | 25fps |
| WDR | 120dB |
| Web Configuration | true |
