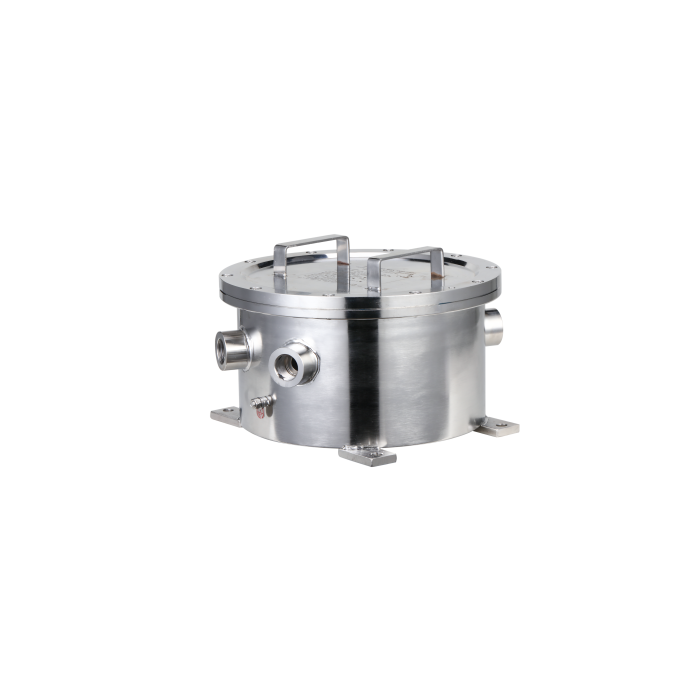

Dahua Explosion-proof Junction Box constructed from SUS316L stainless steel with M25 x 1.5 outlet hole specification.
£985.00
In stock
SKU
CZ300
Dahua Explosion-proof Junction Box constructed from SUS316L stainless steel with M25 x 1.5 outlet hole specification. Rated IP68 for full dust and water ingress protection, with ATEX and IECEx certifications for use in hazardous environments containing explosive gases or combustible dust. Operating temperature range of -40°C to +60°C makes it suitable for demanding petrochemical, oil field, and industrial applications.
Dahua Explosion-proof Junction Box constructed from SUS316L stainless steel with M25 x 1.5 outlet hole specification. Rated IP68 for full dust and water ingress protection, with ATEX and IECEx certifications for use in hazardous environments containing explosive gases or combustible dust. Operating temperature range of -40°C to +60°C makes it suitable for demanding petrochemical, oil field, and industrial applications.
| Manufacturer | Dahua |
|---|---|
| Mfr Catalogue No | 1.0.99.44.10170 |
| Ingress Protection | IP68 |
| Applicable Environments | Explosive gas and dust hazardous areas — oil fields, drilling platforms, oil pipelines, refineries, chemical plants, explosives warehouses |
| Atex Certification | II 2 G Ex db IIC T6 Gb, II 2 D Ex tb IIIC T80°C Db |
| Iecex Certification | Ex db IIC T6 Gb, Ex tb IIIC T80°C Db |
| Outlet Specification | M25 x 1.5 |
| Casing Material | SUS316L Stainless Steel |
| Dimensions | 183 mm × Φ310 mm (7.20" × Φ12.20") |
| Net Weight | 14.7 kg (32.41 lb) |
| Gross Weight | 16.4 kg (36.16 lb) |
| Operating Temperature | -40°C to +60°C (-40°F to +140°F) |
| Operating Humidity | ≤95% |
| Anti Corrosion Level | Basic Protection |
