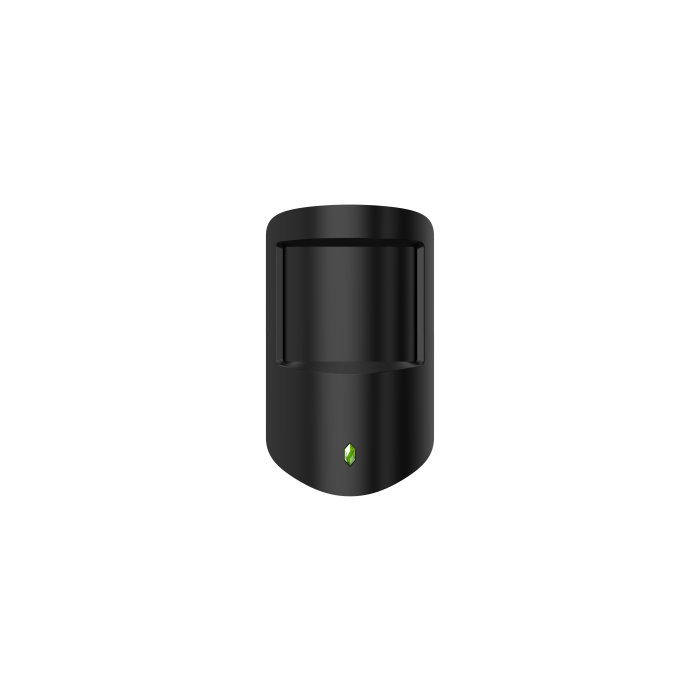

Dahua Wireless PIR Motion Detector with Pet Immunity.
£29.00
In stock
SKU
DHI-ARD1233-W2(868)-B-Black
Dahua Wireless PIR Motion Detector with Pet Immunity. Passive infrared detector covering 12m at 90° when mounted at 2.2m height, with three adjustable sensitivity levels and pet immunity up to 18kg. Features two-way AES128 encrypted communication at 868MHz with frequency hopping, auto temperature compensation, and a CR123A battery rated for 4 years.
Dahua Wireless PIR Motion Detector with Pet Immunity. Passive infrared detector covering 12m at 90° when mounted at 2.2m height, with three adjustable sensitivity levels and pet immunity up to 18kg. Features two-way AES128 encrypted communication at 868MHz with frequency hopping, auto temperature compensation, and a CR123A battery rated for 4 years.
| Manufacturer | Dahua |
|---|---|
| Mfr Catalogue No | 1.0.01.19.10958 |
| Battery Life | 4 years |
| Button | 1 x power button |
| Certifications | CE,EN 50131-1:2006+A1:2009+A2:2017+A3:2020,EN 50131-2-2:2017,EN 50131-6:2017,EN 50131-5-3:2017 |
| Communication | Two-way |
| Communication Distance | Up to 1600m in open space |
| Detection Range | 12m at 90° coverage angle |
| Detection Speed | 0.3m/s to 3m/s |
| Detection Technology | Passive Infrared (PIR) |
| Encryption | AES128 |
| Environmental Class | Class II |
| Frequency Hopping | Yes |
| Indicator | 1 x green alarm indicator |
| Installation | Wall mount |
| Installation Height | 2.2m (7.21ft) |
| Low Battery Alarm | Yes |
| Max Power Consumption | 120mW |
| Measuring Range Temperature | -15°C to +65°C (indoor) |
| Pet Immunity | Up to 18kg (39.68lb) |
| Power Supply | CR123A battery |
| Remote Update | Cloud update with automatic recovery |
| Security Grade | Grade 2 |
| Sensitivity Levels | 3 levels adjustable |
| Sensor Type | Dual element low-noise PIR sensor |
| Tamper Protection | Yes |
| Temperature Compensation | Two-way digital auto temperature compensation |
| Test Mode | Yes |
| Transmitter Power Eirp | Max 25mW |
| White Light Resistance | 2000 lux |
| Wireless Frequency | 868.0MHz to 868.6MHz |
| Casing Material | PC + ABS |
| Dimensions | 104.0mm x 60.0mm x 50.0mm |
| Net Weight | 100g |
| Gross Weight | 170g |
| Operating Temperature | -10°C to +55°C (indoor) |
| Storage Temperature | -10°C to +55°C (indoor) |
| Operating Humidity | 10% to 90% RH |
| Colour | Black |
