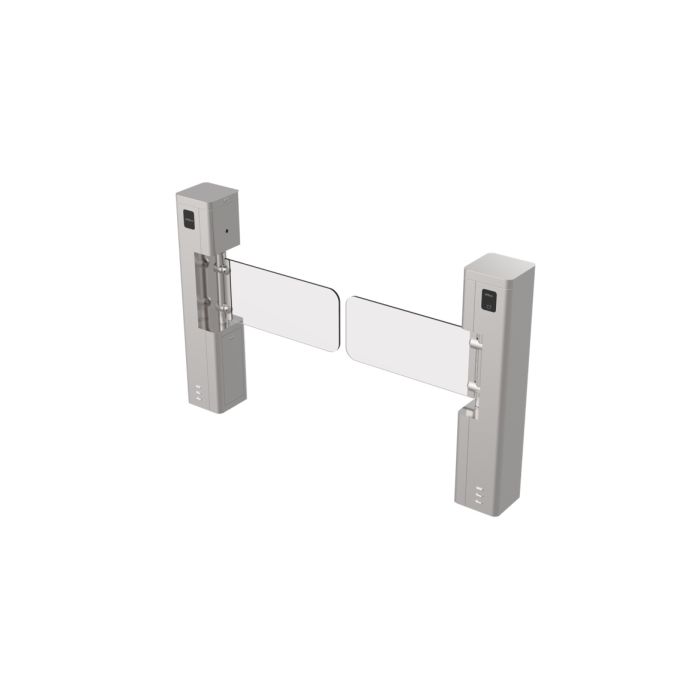

Dahua Swing Barrier Turnstile, Single Left Cabinet with One Card Reader Board.
£1,788.00
In stock
SKU
DHI-ASGB210Z-L
Dahua Swing Barrier Turnstile, Single Left Cabinet with One Card Reader Board. 304 stainless steel cabinet with brushless DC motor, 1,200mm acrylic barrier passage width, and MCBF rated above 3 million cycles. Supports fire passage mode, mechanical anti-squeeze and anti-collision protection, configurable open/close speed, and second authentication via embedded processor with 100,000 user and record capacity.
Dahua Swing Barrier Turnstile, Single Left Cabinet with One Card Reader Board. 304 stainless steel cabinet with brushless DC motor, 1,200mm acrylic barrier passage width, and MCBF rated above 3 million cycles. Supports fire passage mode, mechanical anti-squeeze and anti-collision protection, configurable open/close speed, and second authentication via embedded processor with 100,000 user and record capacity.
| Manufacturer | Dahua |
|---|---|
| Mfr Catalogue No | 1.0.99.68.10135 |
| Anti Collision | true |
| Anti Corrosion Level | Low |
| Anti Squeeze | true |
| Anti Tailgating | true |
| Auto Close | true |
| Barrier Material | Acrylic |
| Buzzer Alarm | true |
| Cabinet Thickness | 1.2mm |
| Casing Material | SUS304 stainless steel |
| Close Delay Time | 0.0s–25.5s (default 0s) |
| Communication | RS-485 |
| Configuration | Single left turnstile with one card reader board |
| Dimensions Inches | 7.87 × 7.87 × 38.58 (L × W × H) |
| Dimensions Mm | 200 × 200 × 980 (L × W × H) |
| Fire Passage Support | true |
| Gross Weight Kg | 30 ± 3 |
| Input Power | 100VAC–240VAC |
| MCBF | ≥3 million cycles |
| Motor | Brushless DC motor (24V) |
| Network Port | 1 × 10/100 Mbps self-adaptive Ethernet port |
| Open Delay Time | 0.0s–25.5s (default 0s) |
| Operating Environment | Indoor |
| Operating Humidity | 5%–93% RH, non-condensing |
| Operating Temperature | -15°C to +70°C |
| Packaging Dimensions Mm | 337 × 305 × 1040 (L × W × H) |
| Pairs Of IR Detectors | 1 pair |
| Passage Modes | Configurable (authorized entry/exit, free pass, bi-directional free pass) |
| Passage Time Range | 1.0s–25.5s (default 5s) |
| Passage Width | 1200mm (47.24 inches) |
| Passing Speed | 20–60 people/min |
| Power Consumption | ≤55W |
| Processor | Embedded Processor |
| Product Type | Swing Barrier Turnstile |
| Record Capacity | 100000 |
| Response Time | 0.2s |
| Running Noise | ≤75dB |
| Second Authentication | true |
| Storage Humidity | 40%–65% RH |
| Storage Temperature | 0°C to +40°C |
| Top Cover Thickness | 1.2mm |
| Unlock Lock Speed | 0.6s–3.0s (adjustable) |
| Unlock Signal Type | Passive signals (relay/dry contact) |
| User Capacity | 100000 |
| Vandal Proof Rating | IK05, IK07 |
| Working Voltage | 24VDC |
