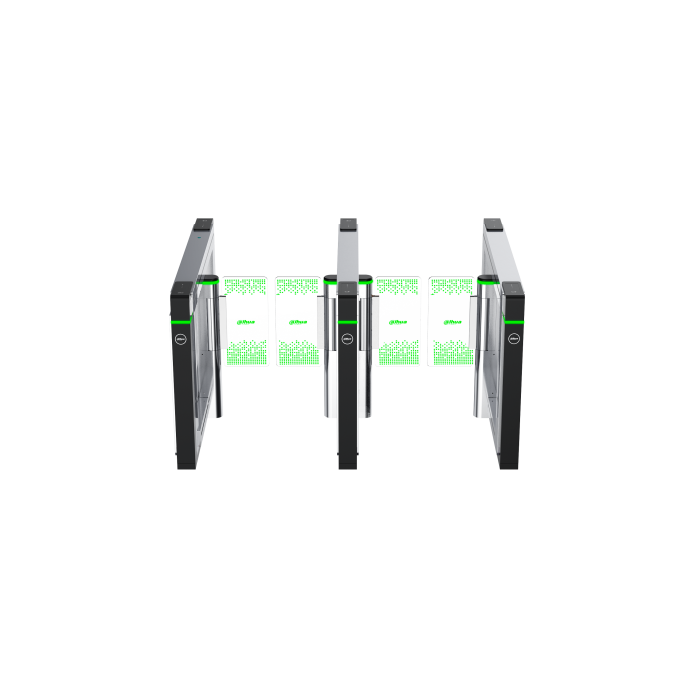

Dahua Swing Turnstile Double Module (ASGB8 Series).
£5,110.00
In stock
SKU
DHI-ASGB822X-D
Dahua Swing Turnstile Double Module (ASGB8 Series). Swing barrier with acrylic flap panels, brushless servo motor, and 30 pairs of IR detectors supporting up to 60 people per minute throughput. Features integrated access control, anti-collision, anti-pinch, anti-trailing, and supports IC card reading with optional fingerprint, barcode, and face recognition modules via RS-485/RS-232 wired connectivity.
Dahua Swing Turnstile Double Module (ASGB8 Series). Swing barrier with acrylic flap panels, brushless servo motor, and 30 pairs of IR detectors supporting up to 60 people per minute throughput. Features integrated access control, anti-collision, anti-pinch, anti-trailing, and supports IC card reading with optional fingerprint, barcode, and face recognition modules via RS-485/RS-232 wired connectivity.
| Manufacturer | Dahua |
|---|---|
| Mfr Catalogue No | 1.0.01.25.11012 |
| Noise Grade D B | <60dB within 1.5 metres |
| Camera Body Style | Swing Turnstile |
| Access Credentials | IC card (standard); fingerprint, barcode, face recognition (custom) |
| Alarm | true |
| Alarm Delay | 0s–60s, adjustable |
| Anti Collision | true |
| Anti Pinch | true |
| Anti Trailing | true |
| Cabinet Material | SUS304 2.0mm stainless steel |
| Communication | RS-485, RS-232 |
| Configuration | Double module |
| Counting | true |
| Digital Quantity Ports | 2 I/O ports |
| Dimensions Mm | 1500 x 120 x 1000 |
| Flap Material | Acrylic |
| Gross Weight Kg | 145 |
| IR Detectors | 30 pairs |
| Lifetime | ≥5 million cycles |
| Lock Unlock Speed | 0.6s–1.6s, adjustable |
| Max Passage Width Mm | 1000 |
| Memorizing | true |
| Motor Type | Brushless servo motor |
| Net Weight Kg | 123 |
| Operating Environment | Indoor |
| Operating Humidity | 5%–93% RH |
| Operating Temperature | -10°C to 60°C |
| Passing Duration | 2–60s, adjustable |
| Passing Frequency | 60 people/minute |
| Power Consumption Standby W | 40 |
| Power Consumption Working W | 200 |
| Power Supply | AC 100–240V, 50/60Hz |
| RS232 Port | 1 (for commissioning) |
| Rust Protection Level | 210H |
| Sound And Light Prompt | true |
| Standard Passage Width Mm | 600 |
| Surface Processing | Nanometer film |
