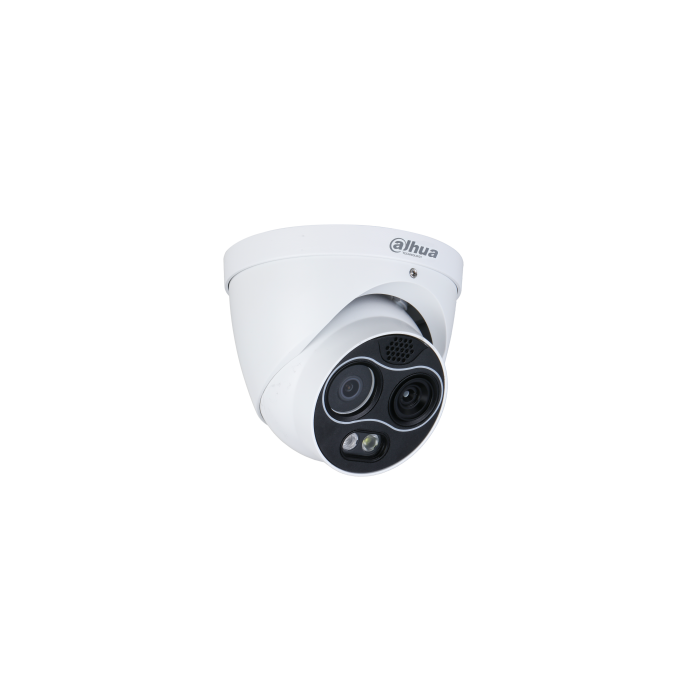

Thermal Camera with Vanadium Oxide Uncooled Detector and 4MP CMOS.
£199.00
In stock
SKU
DHI-TPC-DF1241-B3F4-DW-S2
Thermal Camera with Vanadium Oxide Uncooled Detector and 4MP CMOS. Features hybrid fusion technology combining thermal and visible light imaging. Supports advanced detection including fire, smoke, intrusion, and tripwire alerts with built-in white light and speaker for audio-visual alarms.
Thermal Camera with Vanadium Oxide Uncooled Detector and 4MP CMOS. Features hybrid fusion technology combining thermal and visible light imaging. Supports advanced detection including fire, smoke, intrusion, and tripwire alerts with built-in white light and speaker for audio-visual alarms.
| Manufacturer | Dahua |
|---|---|
| Lighting Type | Built-in IR illuminator |
| Colour | White |
| Camera Body Style | unknown |
| Lens Type | Thermal |
| Lens | Thermal: 256 × 192 3.5mm lens; Visible: 4 MP 4mm lens |
| Effective Pixels | 2336 × 1752 |
| Camera Resolution | unknown |
| Minimum Illumination | Colour: 0.05 lux Black & white: 0.005 lux 0 lux (IR on) |
| White Balance | Auto; Manual; Indoor; Outdoor; Tracking; Street lamp; Natural |
| Ingress Protection | IP67 |
| Camera Power Supply | 12 VDC ± 20% / PoE |
| Camera Power Consumption | Basic: <4.5 W (12 VDC, LED off); 4.8 W (PoE) Max: <10.1 W (12 VDC, LED on, heater on); 12.3 W (PoE) |
| Built-in Audio | 1 AUDIO INPUT |
| Day / Night | Auto (ICR); Colour; B/W |
| Dimensions | 122 × 122 × 112mm |
| Audio Visual Alarm | Built-in white light and speaker |
| Detection Features | Fire detection, smoke detection, tripwire, intrusion, call detection |
| Thermal Detector | Vanadium oxide uncooled focal plane |
| Visible Sensor | 4MP progressive scan CMOS |
