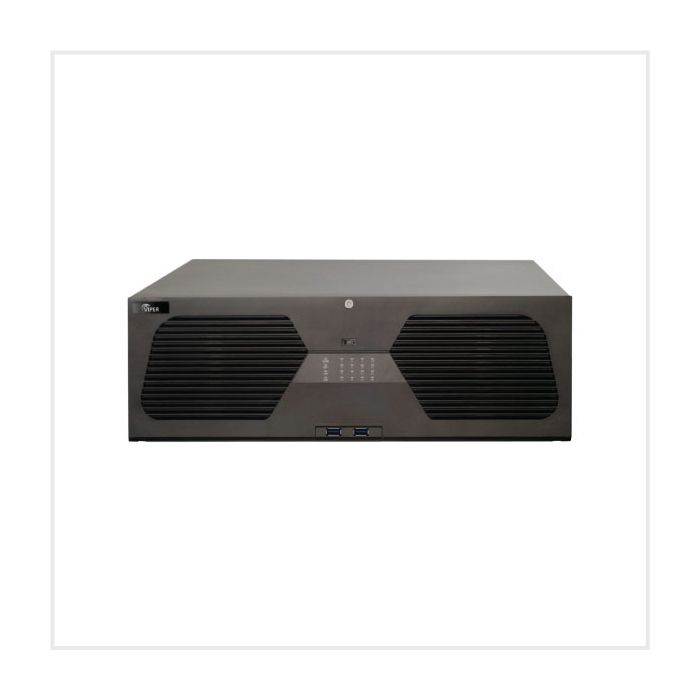

Name: Viper 128CH Deep-Learning AI NVR
Brand: Viper
SKU: VIPDL-NVR-AI2-128BB
Price: 2000.00 GBP

Video

Compression	H.265S / H.265+ / H.265 / H.264
IP Video Input	128CH IPC Input
Resolution	16MP; 12MP; 8MP; 6MP; 5MP; 4MP; 3MP; 1080P
Network Bandwidth	Incoming: 768Mbps / Outgoing: 768Mbps
Output When HDMI 1 output is 8K, HDMI 2 is temporarily unavailable and HDMI 3 outputs at a maximum of 1080P	HDMI 1: 7680 x 4320; 3840 x 2160; 1920 x 1080; 1280 x 1024; 1024 x 768 HDMI 2: 3840 x 2160; 1920 x 1080; 1280 x 1024; 1024 x 768 HDMI 3: 3840 x 2160; 1920 x 1080; 1280 x 1024; 1024 x 768 HDMI 4: 1920 x 1080; 1280 x 1024; 1024 x 768 VGA : 1920 x 1080; 1280 x 1024; 1024 x 768
Multi-Screen Display (Main)	1 / 4 / 6 / 8 / 9 / 13 / 16 / 25 / 32 / 36 / 64
Simultaneous Playback	Max. 16CH
Search	Time Slice; Time; Event; Tag; Smart Search (see below)
Smart Search	Colour coding to display camera footage across selected periods of time.
Functions	Play; Pause; FF; FB; Digital Zoom

Events (continued)

Face Detection	Face Detection Performance (AI by IPC)	128CH
Face Detection	Face Detection Performance (AI by Device)	4CH (4MP Only)
Face Recognition	Face Match Performance	16CH
	Comparison Capability	36 Images (per second)
	Face Image Database	32 Libraries; 10,000 Face Images
	Face Image Search	Supported
	Database Management	Add; Modify; Delete; Search Face Images
	Face Image Adding	Through Web, App or External Import
	Face Image Comparison	Supports Allow List, Block List & Stranger Match Alarm
	Track	Track Display on Map
	Statistical Graph	Bar Graph
	Statistical Mode	By Day; Week; Month; Quarter; Custom Period

Network Interface	RJ45 x2 (10/100/1000Mbps)
Protocol	TCP/IP, HTTP, HTTPS, 802.1x, FTP, DHCP, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IPv6, UDP, WebSocket, PPPoE, SNMP, IGMP
Client Connection	Max. 128 Users Access
OS	Embedded Linux
Video Management Software (PC)	NVMS 2.1.1 (Standard or Professional)

Alarm Type	Manual, Sensor, Motion, Exception & Smart Events
Alarm Input	24CH IPC Alarm Output
Alarm Output	8CH IPC Alarm Output
Alarm Trigger	Recording, Snapshot, Buzzer, Preset, Email
Perimeter Protection (People & Vehicle Classification)	128CH (AI by IPC); 8CH (1080P Only, AI by Device)
Video Metadata	People & Vehicle Classification
Fisheye	Fisheye Dewarping via NVMS or SuperLive Plus App
Plate Detection	Supported (AI by IPC)

Mobile App (iOS or Android)		SuperLive Plus
HDD	SATA	SATA x16 (Max. 10TB each)
	RAID	RAID 0, 1, 5, 6 & 10
	E-SATA	x2
USB		USB 3.0 x1, USB 2.0 x3
RS232		Supported
RS485		Supported (Full-Duplex) with PTZ or Keyboard
Power Supply		ATX275W
Power Consumption		< 50W (without HDD)
Operating Environment		Temperature: -10°C to +50°C; Humidity: Less than 90% (non-condensing)
Dimensions		437mm x 483mm x 143mm
Certificate		UKCA, CE, FCC, PSTI 2023, RoHS, WEEE, REACH (EC1907/2006)
