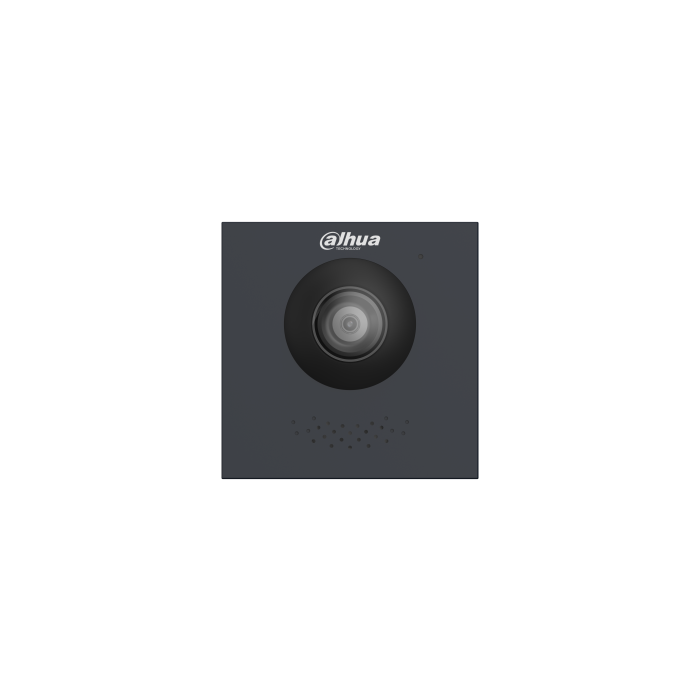

Dahua 2MP Fisheye Modular Apartment Door Station (Black) with 2-wire analog communication.
Dahua 2MP Fisheye Modular Apartment Door Station (Black) with 2-wire analog communication. Features a 1/2.5" CMOS low illumination sensor with 168.6° ...
Dahua 2MP Fisheye Modular Apartment Door Station (Black) with 2-wire analog communication. Features a 1/2.5" CMOS low illumination sensor with 168.6° horizontal field of view, 120dB WDR, and two-way half-duplex audio. Supports IC card, ID card, password, fingerprint, and remote unlock modes via sub-modules; rated IK07 and IP65 for outdoor installation.
Contact 0345 863 9750 for availability
SKU:
DHI-VTO4103FB-Black
Click to copy
✔ Copied!
Product Details
Dahua 2MP Fisheye Modular Apartment Door Station (Black) with 2-wire analog communication. Features a 1/2.5" CMOS low illumination sensor with 168.6° horizontal field of view, 120dB WDR, and two-way half-duplex audio. Supports IC card, ID card, password, fingerprint, and remote unlock modes via sub-modules; rated IK07 and IP65 for outdoor installation.
| Manufacturer | Dahua |
|---|---|
| Ingress Protection | IP65 |
| Image Sensor | 1/2.5" CMOS low illumination |
| Camera Body Style | Modular Flush/Surface Mount Door Station |
| Alarm Output | 1 channel |
| Audio Enhancement | Echo suppression, digital noise reduction |
| Audio Input | 1 channel |
| Audio Mode | Two-way half-duplex |
| Audio Output | Built-in speaker |
| Resolution | 2MP |
| Casing Material | Aluminum alloy |
| Certifications | CE |
| Communication Mode | Analog 2-wire |
| Day Night | Auto (ICR) / Color / B&W |
| Dimensions | 100mm × 100mm × 47.4mm |
| Door Status Detection | 1 channel |
| Exit Button | 1 channel |
| Field Of View Diagonal | 176.7° |
| Field Of View Horizontal | 168.6° |
| Field Of View Vertical | 87.1° |
| Frame Rate NTSC | 30fps |
| Frame Rate PAL | 25fps |
| Gross Weight | 444.5g |
| IK Rating | IK07 |
| Installation | Flush mount; Surface mount |
| Leave Video | Yes (SD card in VTH required) |
| Light Compensation | Auto IR |
| Lock Control | 1 channel |
| Noise Reduction | 3D NR |
| Operating Altitude | 0–3000m |
| Operating Environment | Outdoor |
| Operating Humidity | 10%–90% |
| Operating System | Embedded Linux |
| Operating Temperature | -40°C to +60°C |
| Power Consumption Standby | ≤4W |
| Power Consumption Working | ≤12W |
| Power Output | 1 channel, 12V, 1A |
| Power Supply | 2-wire controller |
| RS485 | 1 |
| Tamper Alarm | Yes |
| Unlock Modes | IC card, ID card, password, fingerprint, remote unlock (sub-module required for first 4) |
| Video Resolution NTSC | 960 x 480 |
| Video Resolution PAL | 960 x 576 |
| WDR | 120dB |
