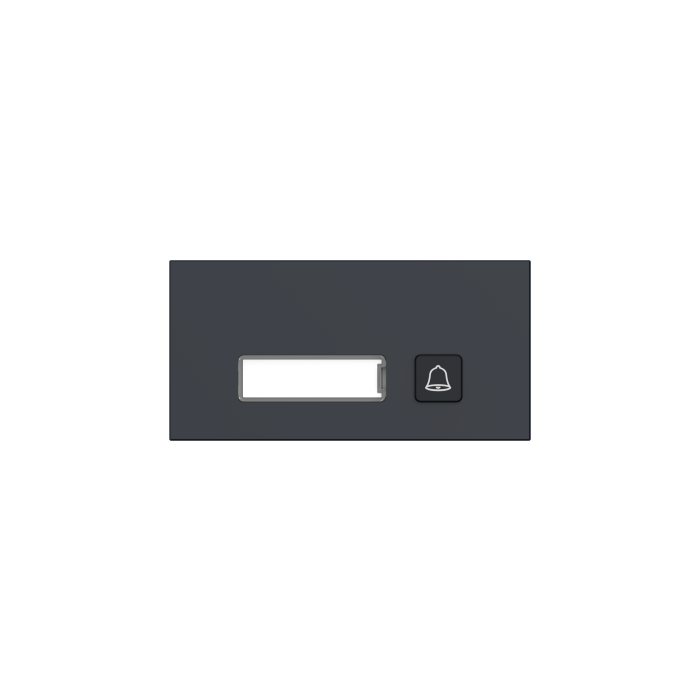

Dahua Single-Button Call Module for modular video door station systems.
Dahua Single-Button Call Module for modular video door station systems. Features a mechanical push button with aluminium alloy casing, rated IP65 (wit...
Dahua Single-Button Call Module for modular video door station systems. Features a mechanical push button with aluminium alloy casing, rated IP65 (with silicone sealant) and IK07 vandal resistance. Operates on 5 VDC supplied by other modules and can also provide 5 VDC power output to adjacent modules.
Contact 0345 863 9750 for availability
SKU:
DHI-VTO4202FB-MB1-Black
Click to copy
✔ Copied!
Product Details
Dahua Single-Button Call Module for modular video door station systems. Features a mechanical push button with aluminium alloy casing, rated IP65 (with silicone sealant) and IK07 vandal resistance. Operates on 5 VDC supplied by other modules and can also provide 5 VDC power output to adjacent modules.
| Manufacturer | Dahua |
|---|---|
| Ingress Protection | IP65 (silicone sealant required for installation) |
| Button Type | Mechanical |
| Casing Material | Aluminum alloy |
| Dimensions | 100 mm × 50.0 mm × 30.50 mm |
| Gross Weight | 0.18 kg |
| IK Rating | IK07 |
| Installation | Flush Mount / Surface Mount |
| Number Of Buttons | 1 |
| Operating Humidity | 10%–90% RH |
| Operating Temperature | -30°C to +60°C |
| Power Consumption | ≤0.5 W |
| Power Output | 5 VDC (provides power to other modules) |
| Power Supply | 5 VDC (provided by other modules) |
| Processor | Embedded Processor |
| Series | DHI-VTO420XFB-X |
