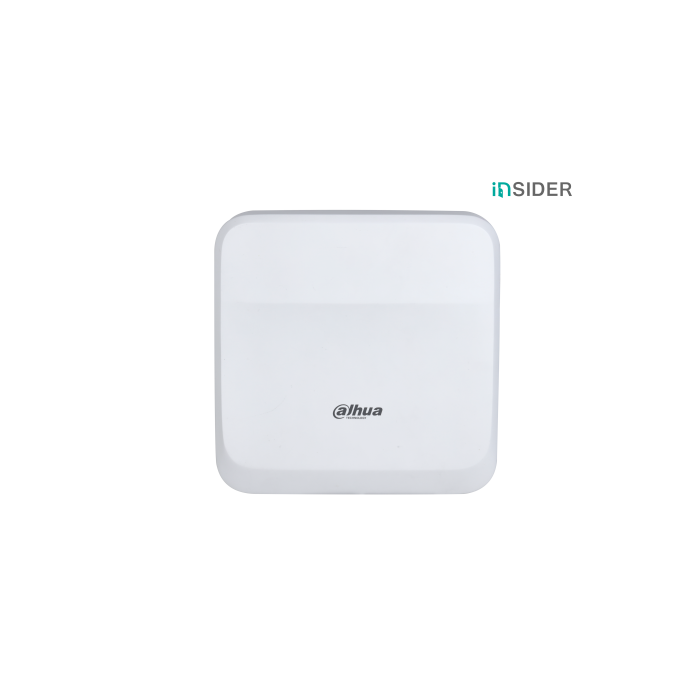

Dahua Two-Door Access Controller with built-in web server supporting main and sub control modes.
Dahua Two-Door Access Controller with built-in web server supporting main and sub control modes. Supports up to 1,000 users (main mode) or 10,000 user...
Dahua Two-Door Access Controller with built-in web server supporting main and sub control modes. Supports up to 1,000 users (main mode) or 10,000 users (sub mode), 3,000 fingerprints, 5,000 Bluetooth cards, and 300,000 records. Connects via TCP/IP with standard PoE (IEEE 802.3at), and supports Wiegand and RS-485 card readers, multiple unlock modes including card, fingerprint, Bluetooth, password, and remote.
In Stock
| Store | Stock |
|---|---|
| PureTech UK | 1 |
| PureTech Derby | Available to order |
SKU:
DHI-ASC3202B
Click to copy
✔ Copied!
Product Details
Dahua Two-Door Access Controller with built-in web server supporting main and sub control modes. Supports up to 1,000 users (main mode) or 10,000 users (sub mode), 3,000 fingerprints, 5,000 Bluetooth cards, and 300,000 records. Connects via TCP/IP with standard PoE (IEEE 802.3at), and supports Wiegand and RS-485 card readers, multiple unlock modes including card, fingerprint, Bluetooth, password, and remote.
| Manufacturer | Dahua |
|---|---|
| Camera Body Style | Access |
| Alarm Input | 2 (digital quantity) |
| Alarm Output | 2 (digital quantity) |
| Anti Passback | Global anti-passback supported |
| Bluetooth Card Capacity | 5000 |
| Card Capacity | 5,000 (main control mode), 50,000 (sub control mode) |
| Card Reader Interfaces | 2x RS-485, 2x Wiegand input |
| Casing Material | PC + ABS |
| Certifications | CE, FCC, UL |
| Control Modes | Main control mode, Sub control mode |
| Data Retention On Power Off | true |
| Dimensions Mm | 186.4 x 185.8 x 58.3 |
| Door Sensor Timeout | true |
| Door Status Detection | 2 |
| Duress Alarm | true |
| Duress Fingerprint | true |
| Exit Buttons | 2 |
| Fingerprint Capacity | 3000 |
| First Person Unlock | true |
| Gross Weight Kg | 0.99 |
| Holiday Periods | 128 |
| Illegal Card Threshold Alarm | true |
| Installation | Surface mount, guide rail mount |
| Interoperability | ONVIF, CGI |
| Intrusion Detection | true |
| Lock Control Outputs | 2 |
| Lock Output Current Max | 1,000mA |
| Lock Output Voltage | 12V DC |
| Multi Door Interlock | Global multi-door interlock supported |
| Multi Person Unlock | true |
| Network Port | 1x RJ-45 10/100 Mbps Ethernet |
| Network Update | true |
| Operating Environment | Indoor |
| Operating Humidity | 5%–95% RH, non-condensing |
| Operating Temperature | -10°C to +55°C |
| Period List | 128 |
| Peripheral Power Budget DC | 1,700mA at 12V |
| Peripheral Power Budget POE | 1,200mA at 12V |
| Power Supply | 12V DC or PoE IEEE 802.3at Type 2 Class 4 |
| Product Type | Two-Door Access Controller |
| Protection Rating | IK06 |
| Protocols | P2P, IPv4, DNS, DDNS, TCP, UDP |
| Real Time Monitoring | true |
| Record Capacity | 300000 |
| Role Management | true |
| RS485 Ports | 3 |
| SDK API | true |
| Standby Power | ≤2W (no peripheral devices) |
| Sub Controllers Supported | 19 |
| Tamper Alarm | true |
| Unlock Modes | Card, remote, password, fingerprint, Bluetooth, combination unlock |
| User Capacity | 1,000 (main control mode), 10,000 (sub control mode) |
| Web Configuration | true |
